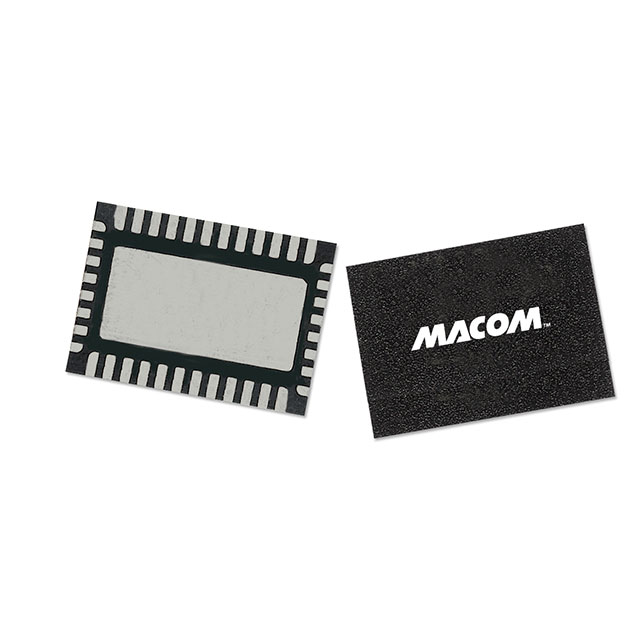

MAAM-011169-TR1000
ActiveMACOM Technology Solutions
IC AMP CATV 45MHZ-1.2GHZ 40PQFN
Deep-Dive with AI
Search across all available documentation for this part.
MAAM-011169-TR1000
ActiveMACOM Technology Solutions
IC AMP CATV 45MHZ-1.2GHZ 40PQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MAAM-011169-TR1000 |
|---|---|
| Current - Supply | 490 mA |
| Frequency [Max] | 1.2 GHz |
| Frequency [Min] | 45 MHz |
| Gain | 25 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 4.4 dB |
| P1dB | 29 dBm |
| Package / Case | 40-VFQFN Exposed Pad |
| RF Type | CATV |
| Supplier Device Package | 40-PQFN (5x7) |
| Test Frequency | 1 GHz |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 20.40 | |
| 10 | $ 18.46 | |||
| 25 | $ 17.00 | |||
| 100 | $ 15.55 | |||
| 250 | $ 14.57 | |||
| 500 | $ 13.60 | |||
| Digi-Reel® | 1 | $ 23.92 | ||
| 10 | $ 18.78 | |||
| 25 | $ 17.28 | |||
| 100 | $ 15.46 | |||
| 250 | $ 14.51 | |||
| 500 | $ 13.90 | |||
| Tape & Reel (TR) | 1000 | $ 12.92 | ||
Description
General part information
MAAM-011169 Series
RF Amplifier IC CATV 45MHz ~ 1.2GHz 40-PQFN (5x7)
Documents
Technical documentation and resources
No documents available
