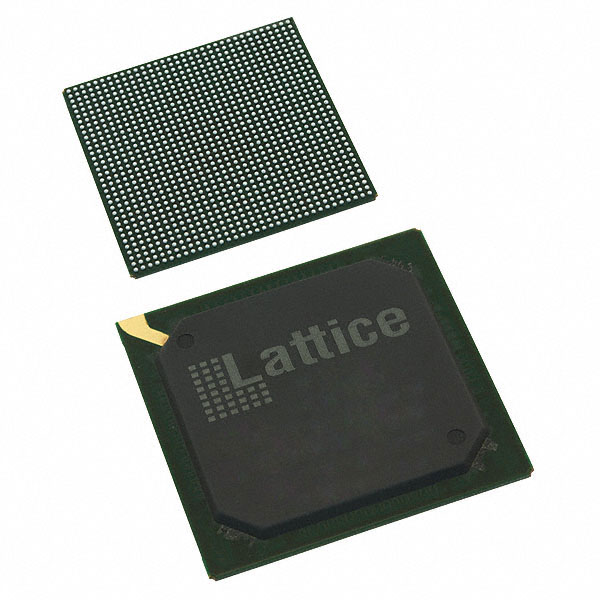

LFE3-150EA-9FN1156I

LATTICE SEMICONDUCTOR

IC FPGA 586 I/O 1156FBGA

Search across all available documentation for this part.

LATTICE SEMICONDUCTOR

IC FPGA 586 I/O 1156FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	LFE3-150EA-9FN1156I

Mounting Type	Surface Mount
Number of I/O	586
Number of LABs/CLBs	18625
Number of Logic Elements/Cells	149000
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	1156-BBGA
Supplier Device Package	1156-FPBGA (35x35)
Total RAM Bits	7014400

Part	Number of LABs/CLBs	Package / Case	Mounting Type	Number of I/O	Number of Logic Elements/Cells	Operating Temperature [Min]	Operating Temperature [Max]	Total RAM Bits	Supplier Device Package	Contents	Utilized IC / Part	For Use With/Related Products	Platform	Accessory Type
LATTICE SEMICONDUCTOR LFE3-150EA-9FN672C	18625	672-BBGA	Surface Mount	380	149000	0 °C	85 °C	7014400	672-FPBGA (27x27)
LATTICE SEMICONDUCTOR LFE3-150EA-AMC-EVN										Board(s)	LFE3-150	LFE3-150	ECP3 FPGA
LATTICE SEMICONDUCTOR LFE3-150EA-6LFN672C	18625	672-BBGA	Surface Mount	380	149000	0 °C	85 °C	7014400	672-FPBGA (27x27)
LATTICE SEMICONDUCTOR LFE3-150EA-8LFN672C	18625	672-BBGA	Surface Mount	380	149000	0 °C	85 °C	7014400	672-FPBGA (27x27)
LATTICE SEMICONDUCTOR LFE3-150EA-7LFN672I	18625	672-BBGA	Surface Mount	380	149000	-40 C	100 °C	7014400	672-FPBGA (27x27)
LATTICE SEMICONDUCTOR LFE3-150EA-8LFN672I	18625	672-BBGA	Surface Mount	380	149000	-40 C	100 °C	7014400	672-FPBGA (27x27)
LATTICE SEMICONDUCTOR LFE3-150EA-7FN672I	18625	672-BBGA	Surface Mount	380	149000	-40 C	100 °C	7014400	672-FPBGA (27x27)
LATTICE SEMICONDUCTOR LFE3-150EA-6FN1156C	18625	1156-BBGA	Surface Mount	586	149000	0 °C	85 °C	7014400	1156-FPBGA (35x35)
LATTICE SEMICONDUCTOR LFE3-ADC-DAC-EVN												LFE3-150		Interface Board
LATTICE SEMICONDUCTOR LFE3-150EA-9FN1156I	18625	1156-BBGA	Surface Mount	586	149000	-40 C	100 °C	7014400	1156-FPBGA (35x35)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	24	$ 411.10
Newark	Each	10	$ 368.70
		25	$ 347.48

General part information

ECP3 Field Programmable Gate Array (FPGA) IC 586 7014400 149000 1156-BBGA
