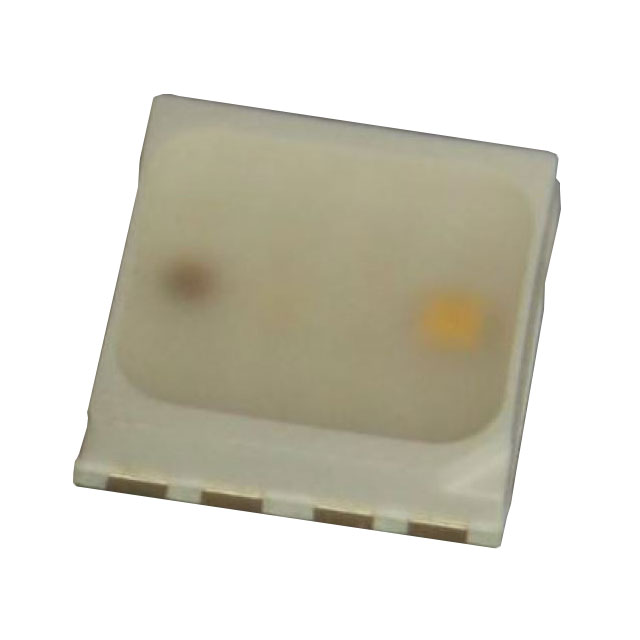

CLQ6A-TKW-C1L1R1H1QBB7935AA3

Obsolete

Cree LED

LED RGBW 8PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

CLQ6A-TKW-C1L1R1H1QBB7935AA3

Obsolete

Cree LED

LED RGBW 8PLCC SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLQ6A-TKW-C1L1R1H1QBB7935AA3	CLQ6A Series

Color	Green, Blue, White, Red	Green, Blue, White, Red, Amber
Configuration	Independent	Independent
Current - Test	100 mA, 100 mA, 100 mA, 100 mA	100 mA
Current - Test	-	100 mA
Current - Test	-	100 mA
Current - Test	-	100 mA
Height (Max) [Max]	1.2 mm	1.2 mm
Lens Style	Oval with Flat Top	Oval with Flat Top, Rectangle with Flat Top
Millicandela Rating	-	6190 mcd
Millicandela Rating [custom]	10400 mcd	10400 - 11915 mcd
Millicandela Rating [custom]	8200 mcd	8200 mcd
Millicandela Rating [custom]	3000 mcd	3000 - 3002 mcd
Millicandela Rating [custom]	4500 mcd	4430 - 5015 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	8-SMD, No Lead	8-SMD, No Lead
Size / Dimension [x]	5 mm	5 - 5.2 mm
Size / Dimension [y]	5.2 mm	4.2 - 5.2 mm
Supplier Device Package	8-PLCC	8-PLCC
Voltage - Forward (Vf) (Typ)	-	2.1 - 3.1 V
Voltage - Forward (Vf) (Typ) [custom]	2.9 V	2.9 V
Voltage - Forward (Vf) (Typ) [custom]	3 V	3 V
Voltage - Forward (Vf) (Typ) [custom]	2.1 V	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	3.1 V	3.1 V
Wavelength - Dominant	528 nm, 468 nm, 622 nm	468 - 622 nm

CLQ6A Series

LED RGBW 8PLCC SMD

Part	Height (Max) [Max]	Package / Case	Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test	Lens Style	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Dominant	Supplier Device Package	Configuration	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ)
Cree LED CLQ6A-TKW-S1L1R1H1QBB7935AA3	1.2 mm	8-SMD, No Lead	Blue, Green, Red, White	10400 mcd	8200 mcd	3000 mcd	4500 mcd	2.9 V	3 V	2.1 V	3.1 V	100 mA, 100 mA, 100 mA, 100 mA	Oval with Flat Top	Surface Mount	5.2 mm	5 mm	468 nm, 528 nm, 622 nm	8-PLCC	Independent
Cree LED CLQ6A-FKW-C1L1P1R1U1H1LBB79453	1.2 mm	8-SMD, No Lead	Blue, Green, Red	11915 mcd		3002 mcd	5015 mcd		3 V	2.1 V	3.1 V		Rectangle with Flat Top	Surface Mount	4.2 mm	5 mm	470 nm, 528 nm, 622 nm		Independent	100 mA	100 mA	100 mA
Cree LED CLQ6A-TKW-C1L1R1H1QBB7935DD3	1.2 mm	8-SMD, No Lead	Blue, Green, Red, White	10400 mcd	8200 mcd	3000 mcd	4500 mcd	2.9 V	3 V	2.1 V	3.1 V	100 mA, 100 mA, 100 mA, 100 mA	Oval with Flat Top	Surface Mount	5.2 mm	5 mm	468 nm, 528 nm, 622 nm	8-PLCC	Independent
Cree LED CLQ6A-TKW-S1L1R1H1QBB7935CC3	1.2 mm	8-SMD, No Lead	Blue, Green, Red, White	10400 mcd	8200 mcd	3000 mcd	4500 mcd	2.9 V	3 V	2.1 V	3.1 V	100 mA, 100 mA, 100 mA, 100 mA	Oval with Flat Top	Surface Mount	5.2 mm	5 mm	468 nm, 528 nm, 622 nm	8-PLCC	Independent
Cree LED CLQ6A-TKW-S1L1R1H1QBB7935DD3	1.2 mm	8-SMD, No Lead	Blue, Green, Red, White	10400 mcd	8200 mcd	3000 mcd	4500 mcd	2.9 V	3 V	2.1 V	3.1 V	100 mA, 100 mA, 100 mA, 100 mA	Oval with Flat Top	Surface Mount	5.2 mm	5 mm	468 nm, 528 nm, 622 nm	8-PLCC	Independent
Cree LED CLQ6A-YKW-C1L1R1H1MBB7C3CJT3	1.2 mm	8-SMD, No Lead	Amber, Blue, Green, Red	10715 mcd		3002 mcd	4430 mcd					100 mA, 100 mA, 100 mA, 100 mA	Rectangle with Flat Top	Surface Mount	5 mm	5.2 mm	468 nm, 528 nm, 592 nm, 622 nm		Independent				6190 mcd	2.1 V, 2.1 V, 3 V, 3.1 V
Cree LED CLQ6A-TKW-S1L1R1H1QBB7935BB3	1.2 mm	8-SMD, No Lead	Blue, Green, Red, White	10400 mcd	8200 mcd	3000 mcd	4500 mcd	2.9 V	3 V	2.1 V	3.1 V	100 mA, 100 mA, 100 mA, 100 mA	Oval with Flat Top	Surface Mount	5.2 mm	5 mm	468 nm, 528 nm, 622 nm	8-PLCC	Independent
Cree LED CLQ6A-TKW-C1L1R1H1QBB7935CC3	1.2 mm	8-SMD, No Lead	Blue, Green, Red, White	10400 mcd	8200 mcd	3000 mcd	4500 mcd	2.9 V	3 V	2.1 V	3.1 V	100 mA	Oval with Flat Top	Surface Mount	5.2 mm	5 mm		8-PLCC	Independent
Cree LED CLQ6A-FKW-C1L11R11H1BB7C4S3	1.2 mm	8-SMD, No Lead	Blue, Green, Red	11915 mcd		3002 mcd	5015 mcd		3 V	2.1 V	3.1 V		Rectangle with Flat Top	Surface Mount	4.2 mm	5 mm	470 nm, 528 nm, 622 nm		Independent	100 mA	100 mA	100 mA
Cree LED CLQ6A-TKW-C1L1R1H1QBB7935AA3	1.2 mm	8-SMD, No Lead	Blue, Green, Red, White	10400 mcd	8200 mcd	3000 mcd	4500 mcd	2.9 V	3 V	2.1 V	3.1 V	100 mA, 100 mA, 100 mA, 100 mA	Oval with Flat Top	Surface Mount	5.2 mm	5 mm	468 nm, 528 nm, 622 nm	8-PLCC	Independent

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CLQ6A Series

Red, Green, Blue, White (RGBW) 622nm Red, 528nm Green, 468nm Blue LED Indication - Discrete 2.1V Red, 3V Green, 3.1V Blue, 2.9V White 8-SMD, No Lead

Documents

Technical documentation and resources

No documents available
