R114703000

Active

Radiall USA, Inc.

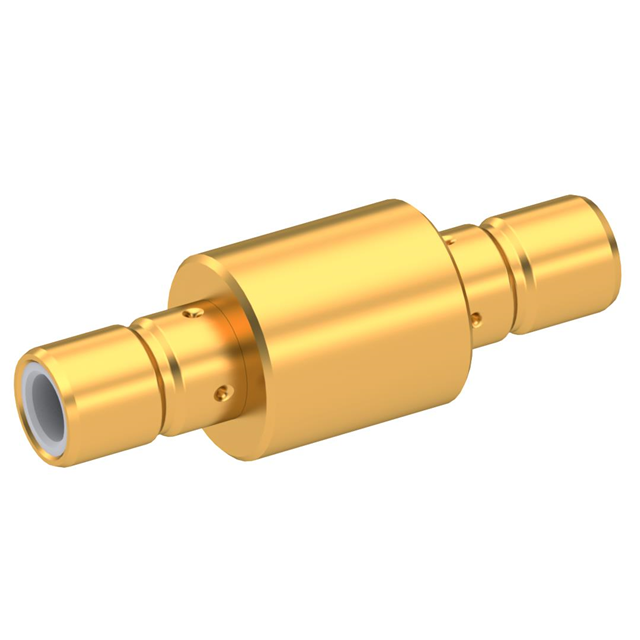

SMB / MALE-MALE ADAPTER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB / MALE-MALE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	R114703000

Adapter Series	SMB to SMB
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SMB Jack, Male Pin
Convert To (Adapter End)	Male Pin, SMB Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Convert To (Adapter End)	Style	Mounting Type	Body Material	Adapter Series	Convert From (Adapter End)	Dielectric Material	Body Finish	Conversion Type	Fastening Type	Center Contact Material	Center Contact Plating	Center Gender	Adapter Type	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Frequency - Max [Max]	Impedance
Radiall USA, Inc. R114703000W	Male Pin SMB Jack	Straight	Free Hanging (In-Line)	Brass	SMB to SMB	SMB Jack Male Pin	Polytetrafluoroethylene (PTFE)	Gold	Same Series	Snap-On	Brass	Gold	Male to Male	Jack to Jack	-65 ░C	165 °C	500	4 GHz	50 Ohms
Radiall USA, Inc. R114703000	Male Pin SMB Jack	Straight	Free Hanging (In-Line)	Brass	SMB to SMB	SMB Jack Male Pin	Polytetrafluoroethylene (PTFE)	Gold	Same Series	Snap-On	Brass	Gold	Male to Male	Jack to Jack	-65 ░C	165 °C	500	4 GHz	50 Ohms
Radiall USA, Inc. R114704000W	Female Socket SMB Plug	Straight	Free Hanging (In-Line)	Brass	SMB to SMB	Female Socket SMB Plug	Polytetrafluoroethylene (PTFE)	Gold	Same Series	Snap-On	Beryllium Copper	Gold	Female to Female	Plug to Plug	-65 ░C	165 °C	500	4 GHz	50 Ohms
Radiall USA, Inc. R114704000	Female Socket SMB Plug	Straight	Free Hanging (In-Line)	Brass	SMB to SMB	Female Socket SMB Plug	Polytetrafluoroethylene (PTFE)	Gold	Same Series	Snap-On	Beryllium Copper	Gold	Female to Female	Plug to Plug	-65 ░C	165 °C	500	4 GHz	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.94

General part information

Adapter Coaxial Connector SMB Jack, Male Pin To SMB Jack, Male Pin 50 Ohms
