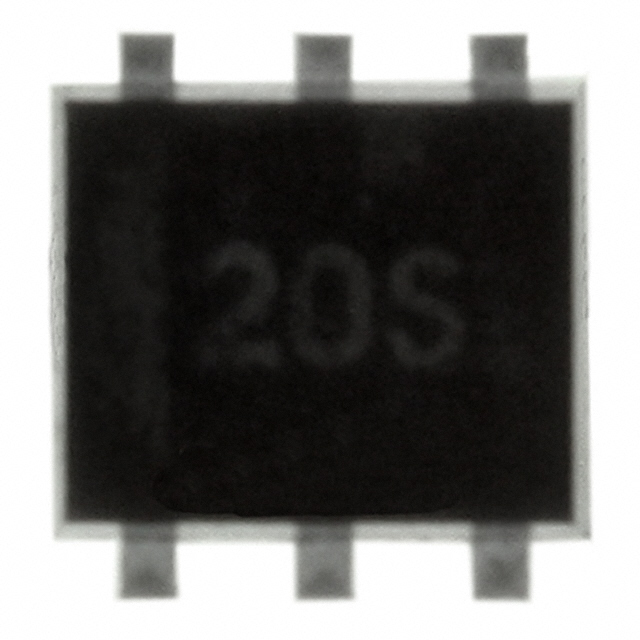

NJG1608KB2-TE1

Active

Nisshinbo Micro Devices Inc

RF SWITCH SPDT 100MHZ TO 6GHZ 16DB 6-PIN FLP-B2

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

RF SWITCH SPDT 100MHZ TO 6GHZ 16DB 6-PIN FLP-B2

Technical Specifications

Parameters and characteristics for this part

RF SWITCH SPDT 100MHZ TO 6GHZ 16DB 6-PIN FLP-B2

Part	Operating Temperature [Max]	Operating Temperature [Min]	P1dB	Test Frequency	RF Type	Impedance	Isolation	Insertion Loss	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Circuit	Frequency Range [Min]	Frequency Range [Max]
Nisshinbo Micro Devices Inc NJG1608KB2-TE1	85 °C	-40 °C	30 dBm	5.85 GHz	General Purpose	50 Ohms	18 dB	0.6 dB	6-FLP-B2	6.5 V	2.5 V	6-SMD, Flat Leads	SPDT	100 MHz	6 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Switch IC General Purpose SPDT 50Ohm 6-FLP-B2
