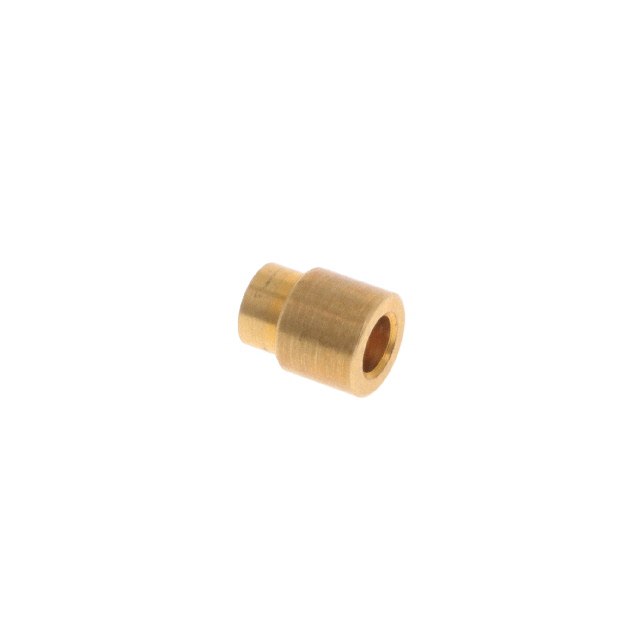

M0939-B-3-B
ActiveRAF Electronic Hardware
6MM RD X 5MM X 3.2MM ID
Deep-Dive with AI
Search across all available documentation for this part.
M0939-B-3-B
ActiveRAF Electronic Hardware
6MM RD X 5MM X 3.2MM ID
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M0939-B-3-B |
|---|---|
| Between Board Height | 0.197 in |
| Between Board Height | 5 mm |
| Diameter - Inside [diameter] | 0.126 in |
| Diameter - Inside [diameter] | 3.2 mm |
| Diameter - Outside [diameter] | 0.236 in |
| Diameter - Outside [diameter] | 6 mm |
| Gender | Swage, Female |
| Length - Overall [x] | 0.303 " |
| Length - Overall [x] | 7.7 mm |
| Material | Brass |
| Screw, Thread Size | M3 |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.96 | |
| 5 | $ 1.64 | |||
| 10 | $ 1.47 | |||
| 25 | $ 1.31 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.11 | |||
Description
General part information
M0939 Series
Round Spacer Unthreaded M3 Brass 0.197" (5.00mm)
Documents
Technical documentation and resources
No documents available
