307-043-454-102

Active

EDAC Inc.

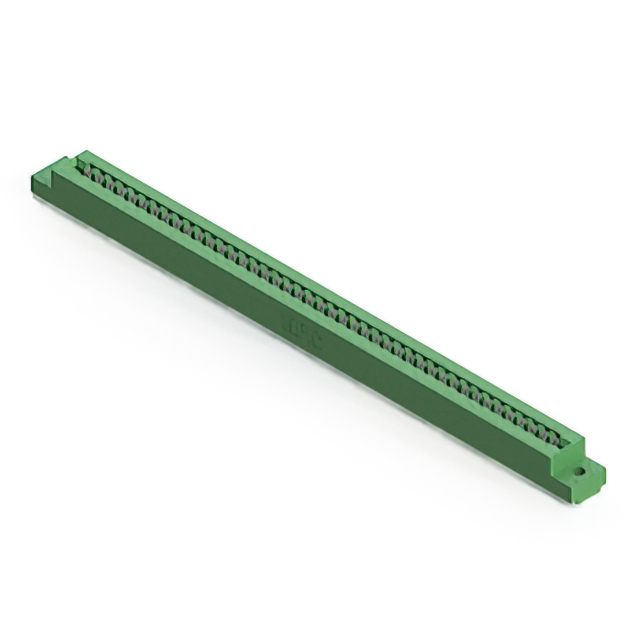

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 43 CONTACTS, PANEL MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

307-043-454-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 43 CONTACTS, PANEL MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-043-454-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Surface Mount
Number of Positions	86
Number of Positions/Bay/Row [custom]	43
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

307-043 Series

...

Part	Color	Read Out	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Contact Type	Number of Rows	Mounting Type	Contact Finish	Contact Material	Termination	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Number of Positions	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 307-043-441-102	Green	Dual	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Semi Bellows	2	Through Hole	Tin	Copper Alloy	Wire Wrap	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	86	0.156 in	3.96 mm	43	-40 °C	105 ░C	Polyester Thermoplastic	1
EDAC Inc. 307-043-454-102	Green	Dual	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Semi Bellows	2	Surface Mount	Tin	Copper Alloy	Solder Eyelet(s)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	86	0.156 in	3.96 mm	43	-40 °C	105 ░C	Polyester Thermoplastic	1
EDAC Inc. 307-043-441-104	Green	Dual	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Semi Bellows	2	Through Hole	Tin	Copper Alloy	Wire Wrap	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	86	0.156 in	3.96 mm	43	-40 °C	105 ░C	Polyester Thermoplastic	1
EDAC Inc. 307-043-459-112	Green	Single	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Semi Bellows	1	Through Hole Right Angle	Tin	Copper Alloy	Solder	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	43	0.156 in	3.96 mm	43	-40 °C	105 ░C	Polyester Thermoplastic	1
EDAC Inc. 307-043-453-107	Green	Dual	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Semi Bellows	2	Through Hole Right Angle	Tin	Copper Alloy	Solder			Flush Mount M3 Threaded Insert Top Opening	86	0.156 in	3.96 mm	43	-40 °C	105 ░C	Polyester Thermoplastic	1
EDAC Inc. 307-043-558-102	Green	Single	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Semi Bellows	1	Through Hole Right Angle	Gold	Copper Alloy	Solder	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	43	0.156 in	3.96 mm	43	-40 °C	105 ░C	Polyester Thermoplastic	1	10 Áin	0.25 Ám
EDAC Inc. 307-043-521-168	Green	Dual	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Semi Bellows	2	Through Hole	Gold	Copper Alloy	Solder			4-40 Flush Mount Threaded Insert Top Opening	86	0.156 in	3.96 mm	43	-40 °C	105 ░C	Polyester Thermoplastic	1	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 307-043-454-112	Green	Dual	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Semi Bellows	2	Surface Mount	Tin	Copper Alloy	Solder Eyelet(s)	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	86	0.156 in	3.96 mm	43	-40 °C	105 ░C	Polyester Thermoplastic	1
EDAC Inc. 307-043-459-107	Green	Single	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Semi Bellows	1	Through Hole Right Angle	Tin	Copper Alloy	Solder			Flush Mount M3 Threaded Insert Top Opening	43	0.156 in	3.96 mm	43	-40 °C	105 ░C	Polyester Thermoplastic	1
EDAC Inc. 307-043-441-112	Green	Dual	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Semi Bellows	2	Through Hole	Tin	Copper Alloy	Wire Wrap	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	86	0.156 in	3.96 mm	43	-40 °C	105 ░C	Polyester Thermoplastic	1
