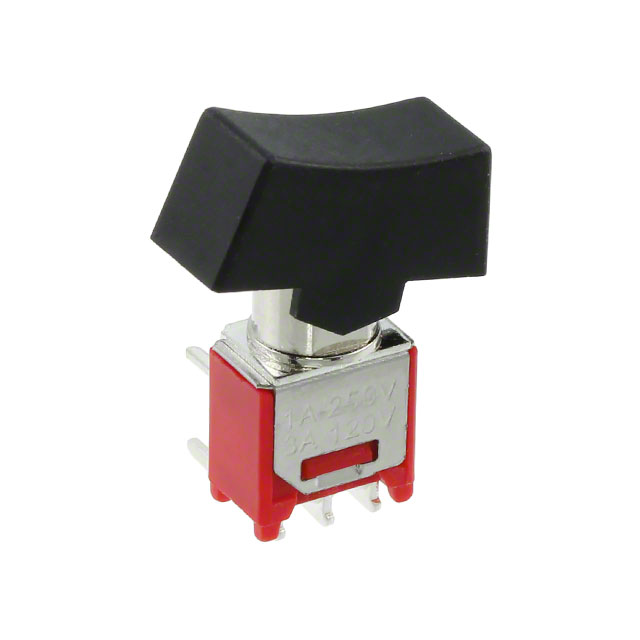

RMS1R202M6QES
ActiveTE Connectivity Raychem Cable Protection
SWITCH ROCKER SPDT 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RMS1R202M6QES
ActiveTE Connectivity Raychem Cable Protection
SWITCH ROCKER SPDT 3A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RMS1R202M6QES |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A |
| Features | Process Sealed |
| Mechanical Life | 30000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.42 | |
| 10 | $ 3.05 | |||
| 25 | $ 2.89 | |||
| 50 | $ 2.79 | |||
| 100 | $ 2.65 | |||
| 300 | $ 2.59 | |||
Description
General part information
RMS1R2 Series
Rocker Switch SPDT 3A (AC/DC) 120 V Through Hole, Right Angle
