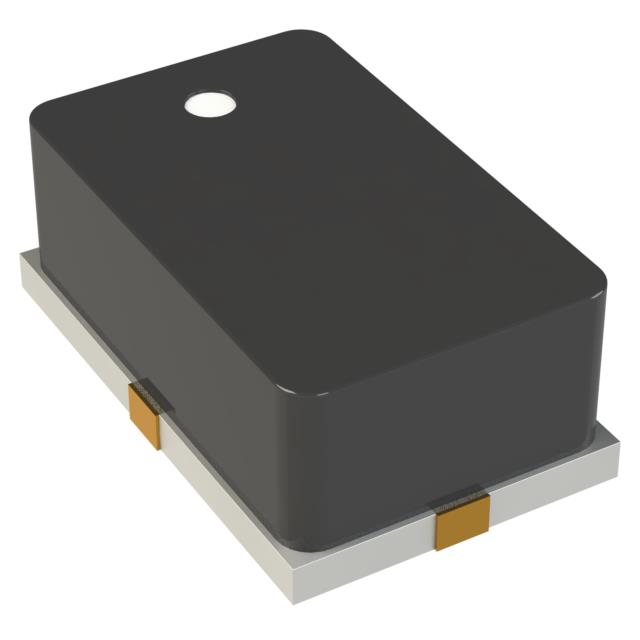

MSW2001-200
ActiveMACOM Technology Solutions
IC RF SWITCH SPDT 4GHZ CS204
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSW2001-200
ActiveMACOM Technology Solutions
IC RF SWITCH SPDT 4GHZ CS204
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW2001-200 |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 4 GHz |
| Frequency Range [Min] | 400 MHz |
| IIP3 | 65 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.4 dB |
| Isolation | 36 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | 4-SMD Module |
| RF Type | General Purpose |
| Supplier Device Package | CS204 |
| Test Frequency | 4 GHz |
| Voltage - Supply | 28 V, 125 V, 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 290.32 | |
Description
General part information
MSW2001 Series
RF Switch IC General Purpose SPDT 50Ohm CS204
