C2777-JF08R0R041090AA

Obsolete

JAE Electronics

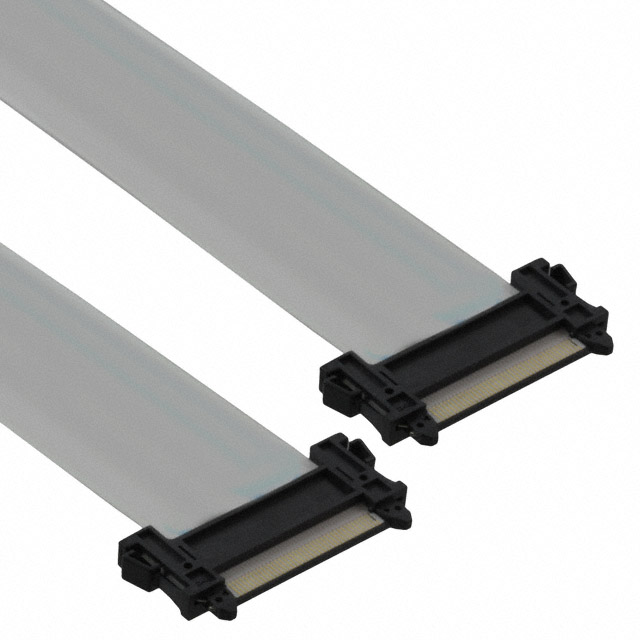

JF08 HI SPD FLX ASSMBLY 41PINS

Search across all available documentation for this part.

Obsolete

JAE Electronics

JF08 HI SPD FLX ASSMBLY 41PINS

Technical Specifications

Parameters and characteristics for this part

Specification	C2777-JF08R0R041090AA

Contact Termination	Receptacle with Latch to Receptacle with Latch
Length	0.9 m
Length [x]	35.43 in
Number of Positions	41
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Contact Termination	Length [x]	Length [x]	Number of Positions	Length	Length
JAE Electronics JF08R0R041020UA	0.5 mm	0.02 in	Receptacle with Latch to Receptacle with Latch	7.87 "	200 mm	41
JAE Electronics JF08R0R051100MA	0.5 mm	0.02 in	Receptacle with Latch to Receptacle with Latch			51	39.37 "	1 m
JAE Electronics JF08R0R051030MA	0.5 mm	0.02 in	Receptacle with Latch to Receptacle with Latch	11.81 in	300 mm	51
JAE Electronics JF08R0R051025MA	0.5 mm	0.02 in	Receptacle with Latch to Receptacle with Latch			51	9.84 "	0.25 m
JAE Electronics C2777-JF08R0R041090AA	0.5 mm	0.02 in	Receptacle with Latch to Receptacle with Latch	35.43 in		41		0.9 m
JAE Electronics JF08R0R051035MA	0.5 mm	0.02 in	Receptacle with Latch to Receptacle with Latch			51	13.78 "	350 mm
JAE Electronics JF08R0R041020MA	0.5 mm	0.02 in	Receptacle with Latch to Receptacle with Latch	7.87 "	200 mm	41
JAE Electronics JF08R0R051050MA	0.5 mm	0.02 in	Receptacle with Latch to Receptacle with Latch			51	19.69 "	50 cm
JAE Electronics JF08R0R051020UA	0.5 mm	0.02 in	Receptacle with Latch to Receptacle with Latch	7.87 "	200 mm	51
JAE Electronics JF08R0R051040UA	0.5 mm	0.02 in	Receptacle with Latch to Receptacle with Latch			51	15.75 "	400 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

41 Position Flat Flex Cable Assembly Receptacle with Latch to Receptacle with Latch 35.43" (900.00mm)
