PJ-24V150WBNA

Obsolete

Delta Electronics

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 150 W, 85V AC TO 264V AC, ADJUSTABLE, FIXED

Find alt

Alpha

PJ-24V150WBNA

Obsolete

Delta Electronics

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 150 W, 85V AC TO 264V AC, ADJUSTABLE, FIXED

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

PJ-24V150 Series

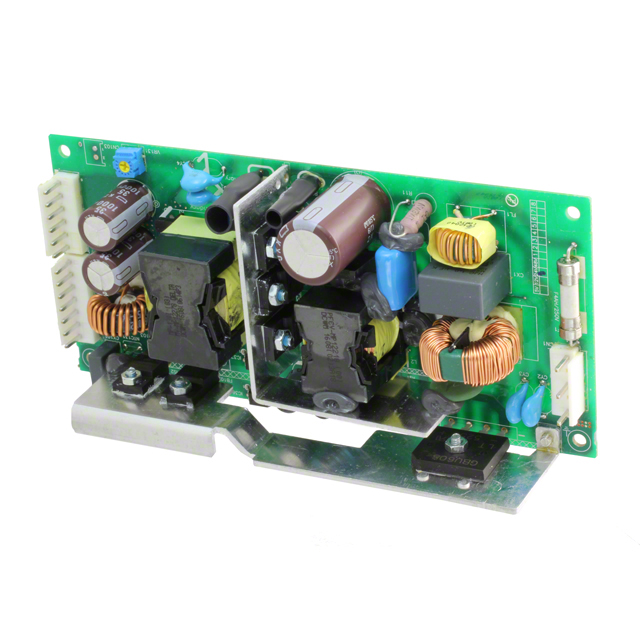

PJ-24V150WBNA is a PJ series 150W AC to DC power supply comes with universal AC input at 85VAC to 264VAC. Other features include low leakage / Inrush current and conformal coating on the PCBAs to provide protection against dust and chemical pollutants. The built-in active PFC provides PF <gt/> 0.97 and fulfils Harmonic Current Emission according to IEC/EN/BS EN 61000-3-2. The PJ series is certified for EMC standards according to EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN/BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment and EMS according to EN/BS EN 55024. In addition, the detachable input and output connectors are from JST and only recognized Japanese capacitors are used.

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-24V150WBNA

Applications	ITE (Commercial)
Approval Agency	cURus, CB, TUV, CE
Current - Output 1	6.3 A
Efficiency	91 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-10 °C
Power (Watts)	150 W
Size / Dimension Height	1.46 in
Size / Dimension Length	6.3 in
Size / Dimension Width	2.95 in
Type	Conformal Coated, Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	3 kV
Voltage - Output 1	24 V

PJ-24V150 Series

Part	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Approval Agency	Voltage - Isolation	Number of Outputs	Type	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Power (Watts)	Applications	Features	Voltage - Output 1	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Efficiency	Current - Output 1
Delta Electronics PJ-24V150WBNA	6.3 in	2.95 in	1.46 in	CB CE cURus TUV	3 kV	1	Conformal Coated Open Frame	85 VAC	264 V	150 W	ITE (Commercial)	Adjustable Output PFC Universal Input	24 V	Chassis Mount	70 °C	-10 °C	91 %	6.3 A
Delta Electronics PJ-24V150WCRA	7.4 in	3.35 in	1.85 in	CB CE cURus TUV	3 kV	1	Enclosed	85 VAC	264 V	150 W	ITE (Commercial)	Adjustable Output PFC Remote On/Off Universal Input	24 V	Chassis Mount	70 °C	-10 °C	91 %	6.3 A
Delta Electronics PJ-24V150WBRA	6.3 in	2.95 in	1.46 in	CB CE cURus TUV	3 kV	1	Open Frame	85 VAC	264 V	150 W	ITE (Commercial)	Adjustable Output PFC Remote On/Off Universal Input	24 V	Chassis Mount	70 °C	-10 °C	91 %	6.3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Technical Data Sheet EN

PJ-24V150WBNA | Datasheet

Standard Power Supplies UL Cert

Power Supplies Catalog, Standard

PJ-12/24V150Wx TUV Cert
