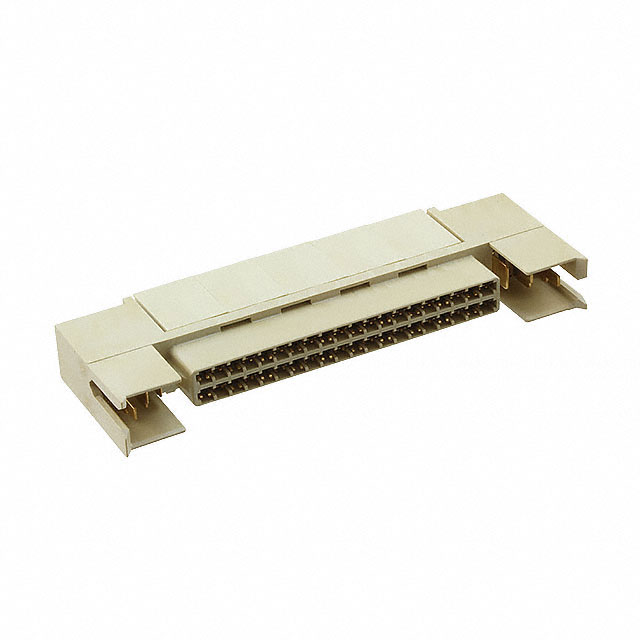

Specification	6367555-2

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Blade Sockets, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Layout (Typical)	40 Differential Pairs, 40 Signal Ground, 6 Utility
Differential Pairs (Typical)	40
Features	Mating Guide, Board Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	126
Number of Positions Loaded	All
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Termination	Solder

6367555 Series

Part	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Connector Style	Mounting Type	Contact Finish	Color	Contact Layout (Typical)	Differential Pairs (Typical)	Contact Finish Thickness	Features	Number of Positions	Number of Positions Loaded	Termination	Connector Type
TE Connectivity AMP Connectors 6367555-1	UL94 V-0	-55 °C	85 °C	High Speed	Right Angle Through Hole	Gold	Natural	40 Differential Pairs 40 Signal Ground 6 Utility	40	30 µin	Board Lock Mating Guide	126	All	Solder	Blade Sockets Female Sockets Receptacle
TE Connectivity AMP Connectors 6367555-2	UL94 V-0	-55 °C	85 °C	High Speed	Right Angle Through Hole	Gold	Natural	40 Differential Pairs 40 Signal Ground 6 Utility	40	30 µin	Board Lock Mating Guide	126	All	Solder	Blade Sockets Female Sockets Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
