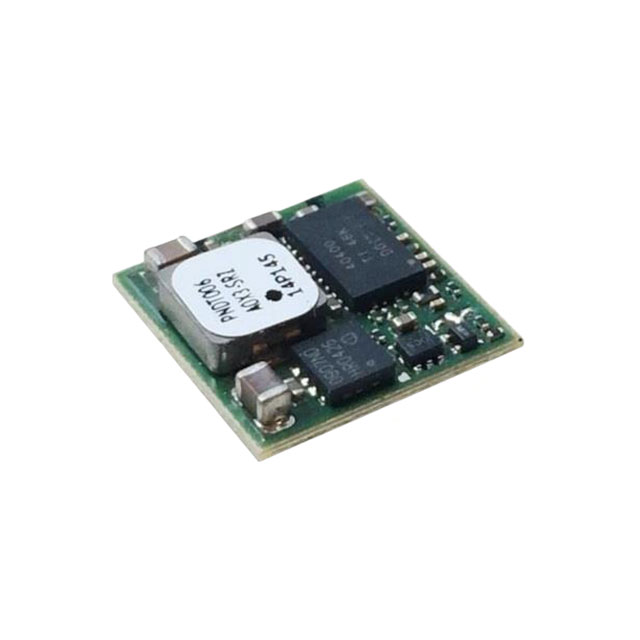

PNDT006A0X3-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.45-5.5V
PNDT006A0X3-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.45-5.5V
Description
General part information
PNDT006 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.45 ~ 5.5V 6A 3V - 14.4V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PNDT006A0X3-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Low |
| Current - Output (Max) | 6 A |
| Efficiency | 92.3 % |
| Features | UVLO, OCP, Remote On/Off, OVP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 17-SMD Module |
| Size / Dimension Height | 0.11 in |
| Size / Dimension Length | 0.48 in |
| Size / Dimension Width | 0.48 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 14.4 V |
| Voltage - Input (Min) | 3 V |
| Voltage - Output 1 (Max) | 5.5 V |
| Voltage - Output 1 (Min) | 0.45 V |
