3-6450170-5
UnknownTE Connectivity AMP Connectors

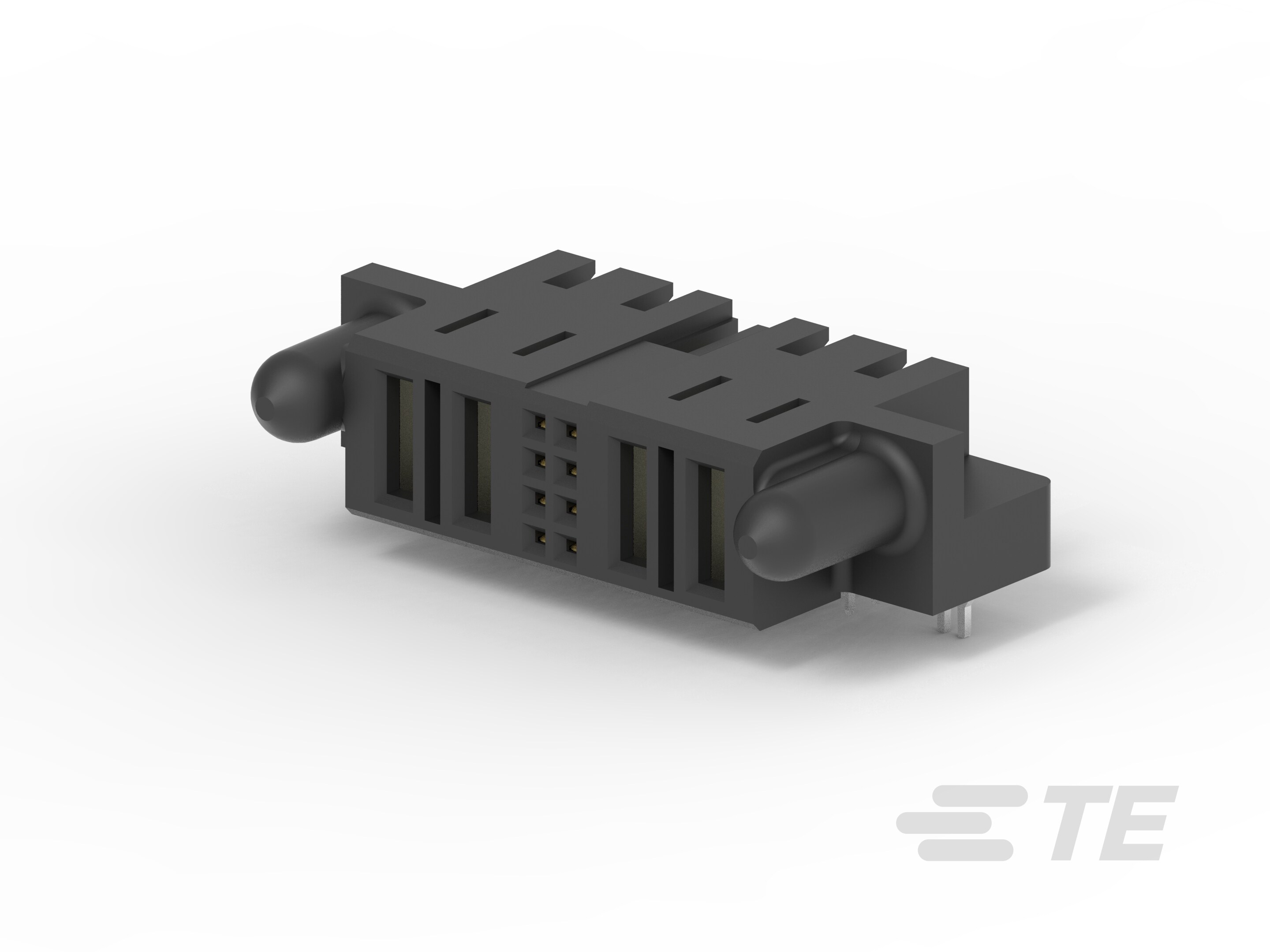

CONN RCPT MULTI-BEAM 12POS PCB
3-6450170-5
UnknownTE Connectivity AMP Connectors
CONN RCPT MULTI-BEAM 12POS PCB
Description
General part information
6450170 Series
PCB Mount Receptacle, Right Angle, Board-to-Board, 12 Position, 2.54 mm / 6.35 mm [.1 in / .25 in] Centerline, Fully Shrouded, Gold (Au)
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-6450170-5 |
|---|---|
| Connector Style | Multi-Beam |
| Connector Type | Receptacle, Blade Sockets, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Guide Pin, Board Lock |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Pitch | 0.1 in |
| Power Contacts (Typical) | 4 |
| Signal Contacts (Typical) | 8 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
