Part	Supplied Contents	Primary Attributes	Type	Utilized IC / Part	Contents	Function	Board Type	Total Output Count	Output Type	Non-Isolated Output Count	Current - Output (Value 1)	Current - Output (Value 4)	Current - Output (Value 3)	Current - Output (Value 2)	Main Purpose	Frequency - Switching	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Regulator Topology	Voltage - Output (4)	Voltage - Output (1)	Voltage - Output (3)	Voltage - Output (2)	Current - Output	Current - Output (2)	Current - Output (5)	Current - Output (1)	Current - Output (6)	Current - Output (3)	Current - Output (4)	Voltage - Output	Voltage - Output (Max)	Voltage - Output (Min)	Voltage - Output (5)	Voltage - Output (6)	Voltage - Output (7)	Embedded	Voltage - Output (Positive)	Voltage - Output (Negative Minimum)	Voltage - Output (Negative Maximum)	Voltage - Output (Maximum)	Voltage - Output (Typical)	Voltage - Output (Minimum)	Voltage - Output	Current - Output

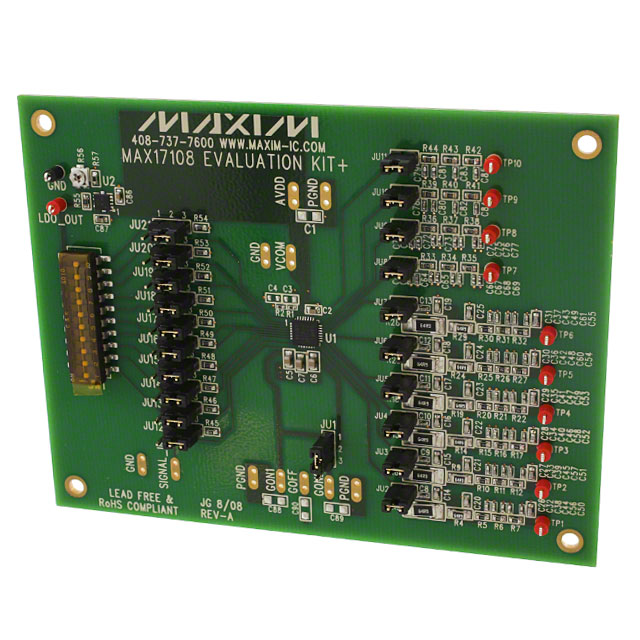

Analog Devices Inc./Maxim Integrated MAX17108EVKIT+	Board(s)	Level Shifter	Video	MAX17108	Board	Video Processing
Analog Devices Inc./Maxim Integrated MAX17117EVKIT+	Board(s)			MAX17117	Board		Fully Populated	4 count	Non-Isolated	4	250 mA	10 mA	20 mA	200 mA	LCD Supply Special Purpose DC/DC	1.2 MHz	2.3 V	5.5 V	Boost Inverting	-6 V	4.25 V	23 V	8.5 V
Analog Devices Inc./Maxim Integrated MAX17122EVKIT+	Board(s)			MAX17122	Board		Fully Populated	6	Non-Isolated	6					LCD Supply Special Purpose DC/DC	750 kHz	10 V	14 V	Boost Buck	28 V	3.3 V	15 V	5 V	100mA 2.2A 2.5A 25mA 450mA	2.2 A	100 mA	2.5 A	25 mA	450 mA	100 mA	-12V ~ -20V -7.5V 15V 28V 3.3V 5V	-20 V	-12 V	-7.5 V	-12 V	-20 V
Analog Devices Inc./Maxim Integrated MAX17135EVKIT+	Board(s)			MAX17135	Board		Fully Populated	4 count	Non-Isolated	4	200 mA	20 mA	20 mA	200 mA	Electronic Paper Special Purpose DC/DC	1 MHz	2.7 V	5.5 V	Boost Buck	-20 V	15 V	-15 V	22 V
Analog Devices Inc./Maxim Integrated MAX17120EVKIT+	Board(s)	Level Shifter	Video	MAX17120	Board	Video Processing																															No
Analog Devices Inc./Maxim Integrated MAX17116EVKIT#	Board(s)			MAX17116	Board		Fully Populated	2	Non-Isolated	2 count					Active Matrix OLED Special Purpose DC/DC	1.4 MHz	2.3 V	4.2 V	Boost Inverting																			4.6 V	-5.4 V	-1.5 V	-5.4 V	4.6 V	-1.5 V	-5.4 V -1.5 V 4.6 V	250 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MAX17108EVKIT+ | Datasheet
