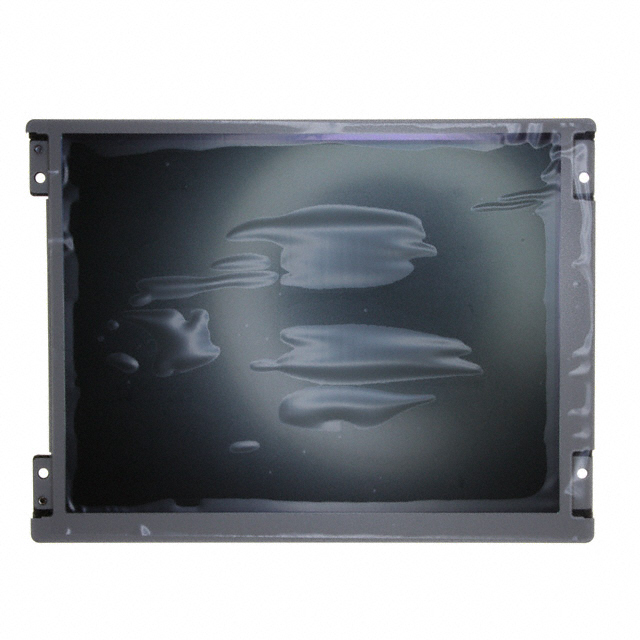

LTA084C271F
UnknownToshiba Semiconductor and Storage
LCD 8.4INCH 800X600 SVGA
LTA084C271F
UnknownToshiba Semiconductor and Storage
LCD 8.4INCH 800X600 SVGA
Description
General part information
LTA084 Series
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 8.4" (213.36mm) 800 x 600 (SVGA)
Technical Specifications
Parameters and characteristics for this part
| Specification | LTA084C271F |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Diagonal Screen Size | 8.4 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch Height | 0.21 mm |
| Dot Pitch Width | 0.21 mm |
| Dot Pixels (Horizontal) | 800 pixels |
| Dot Pixels (Resolution) | SVGA |
| Dot Pixels (Vertical) | 600 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | LVDS |
| Viewing Area Height | 127.8 mm |
| Viewing Area Width | 170.4 mm |
