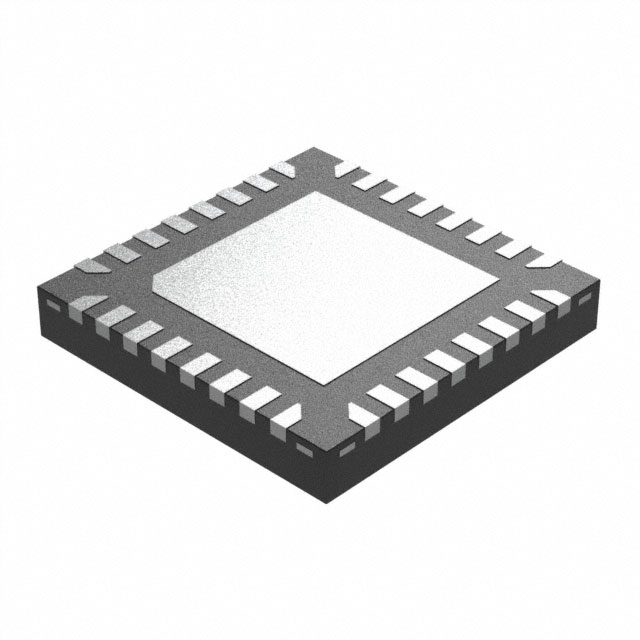

NAU8401YG TR
ActiveNuvoton Technology Corporation
IC DAC/AUDIO 24BIT 48K 32QFN
NAU8401YG TR
ActiveNuvoton Technology Corporation
IC DAC/AUDIO 24BIT 48K 32QFN
Description
General part information
NAU8401 Series
DAC, Audio 24 b 48k I2S, PCM 32-QFN (5x5)
Technical Specifications
Parameters and characteristics for this part
| Specification | NAU8401YG TR |
|---|---|
| Data Interface | PCM, I2S |
| Mounting Type | Surface Mount |
| Number of Channels | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 32-WFQFN Exposed Pad |
| Package Length | 5 mm |
| Package Name | 32-QFN |
| Package Width | 5 mm |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 48 kHz |
| Type | Audio, DAC |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.65 V |
| Voltage Supply Source | Analog, Digital |
