M8340109K1002FCD03
ActiveVishay Dale
RESISTOR NETWORK,THICK FILM,10KOHMS,50WV,1+/-% TOL,-100,100PPM-TC,9810-CASE
M8340109K1002FCD03
ActiveVishay Dale
RESISTOR NETWORK,THICK FILM,10KOHMS,50WV,1+/-% TOL,-100,100PPM-TC,9810-CASE
Description
General part information
Military M83401/03 Series

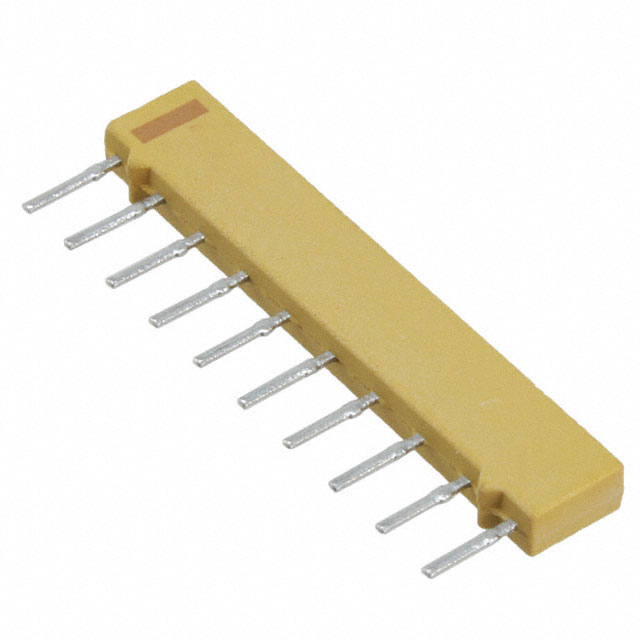

10k Ohm ±1% 120mW Power Per Element Bussed 9 Resistor Network/Array ±100ppm/°C 10-SIP
Technical Specifications
Parameters and characteristics for this part
| Specification | M8340109K1002FCD03 |
|---|---|
| Circuit Type | Bussed |
| Grade | Military |
| Height - Seated (Max) | 0.195 in |
| Mounting Type | Through Hole |
| Number of Pins | 10 |
| Number of Resistors | 9 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 10-SIP |
| Package Name | 10-SIP |
| Power Per Element | 120 mW |
| Qualification | MIL-PRF-83401, 09 |
| Resistance | 10 kOhm |
| Size / Dimension Length | 0.983 in |
| Size / Dimension Width | 0.098 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
