Specification	GBU8JL-7014M3/45

Current - Average Rectified (Io)	3.9 A
Current - Reverse Leakage	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C

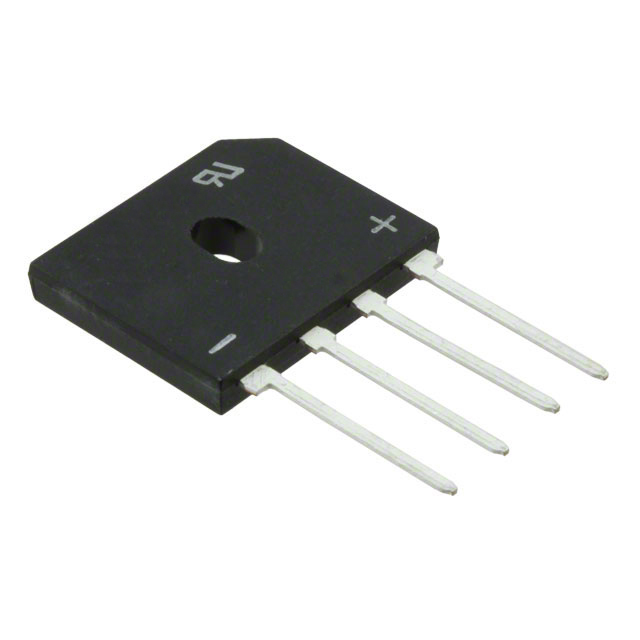

Package / Case	GBU, 4-SIP
Package Name	GBU
Technology	Standard
Voltage - Forward (Vf) (Max)	1 V
Voltage - Peak Reverse (Max)	600 V

GBU8 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Forward (Vf) (Max)	Package / Case	Voltage - Peak Reverse (Max)	Diode Type	Technology	Package Name	Current - Reverse Leakage	Current - Average Rectified (Io)	Mounting Type
Vishay General Semiconductor - Diodes Division GBU8J-7000M3/45	-55 °C	150 °C	1 V	4-SIP GBU	600 V	Single Phase	Standard	GBU	5 µA	3.9 A	Through Hole
Vishay General Semiconductor - Diodes Division GBU8J-02E3/P	-55 °C	150 °C	1 V	4-SIP GBU	600 V	Single Phase	Standard	GBU	5 µA	3.9 A	Through Hole
Vishay General Semiconductor - Diodes Division GBU8B-M3/51	-55 °C	150 °C	1 V	4-SIP GBU	100 V	Single Phase	Standard	GBU	5 µA	8 A	Through Hole
Vishay General Semiconductor - Diodes Division GBU8K-3E3/51	-55 °C	150 °C	1 V	4-SIP GBU	800 V	Single Phase	Standard	GBU	5 µA	3.9 A	Through Hole
Vishay General Semiconductor - Diodes Division GBU8JL-5701M3/51	-55 °C	150 °C	1 V	4-SIP GBU	600 V	Single Phase	Standard	GBU	5 µA	3.9 A	Through Hole
Vishay General Semiconductor - Diodes Division GBU8K-5M3/51	-55 °C	150 °C	1 V	4-SIP GBU	800 V	Single Phase	Standard	GBU	5 µA	3.9 A	Through Hole
Vishay General Semiconductor - Diodes Division GBU8K-7000M3/45	-55 °C	150 °C	1 V	4-SIP GBU	800 V	Single Phase	Standard	GBU	5 µA	3.9 A	Through Hole
Vishay General Semiconductor - Diodes Division GBU8KL-5301E3/51	-55 °C	150 °C	1 V	4-SIP GBU	800 V	Single Phase	Standard	GBU	5 µA	3.9 A	Through Hole
Vishay General Semiconductor - Diodes Division GBU8M-M3/51	-55 °C	150 °C	1 V	4-SIP GBU	1000 V	Single Phase	Standard	GBU	5 µA	8 A	Through Hole
Vishay General Semiconductor - Diodes Division GBU8J-E3/45	-55 °C	150 °C	1 V	4-SIP GBU	600 V	Single Phase	Standard	GBU	5 µA	3.9 A	Through Hole
