AZ9731-1C-12DC4

Active

American Zettler

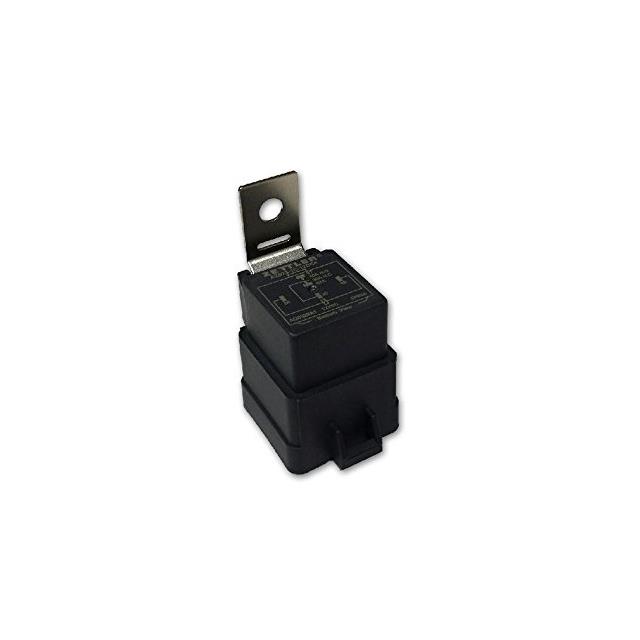

RELAY AUTOMOTIVE SPDT 30A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ9731-1C-12DC4

Active

American Zettler

RELAY AUTOMOTIVE SPDT 30A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AZ9731-1C-12DC4	AZ9731 Series

Coil Current	133.3 mA	133.3 mA
Coil Power	1.6 W	1.6 W
Coil Resistance	90 Ohms	90 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C), SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	30 A	30 - 40 A
Features	Shrouded w/ Steel Bracket, MINI-ISO	Resistor, MINI-ISO, Shrouded w/ Steel Bracket, Shrouded w/ Steel Bracket Sealed - Epoxy, MINI-ISO w/ Steel Mounting Bracket
Mounting Type	Chassis Mount	Socketable, Chassis Mount
Must Operate Voltage	7.8 VDC	7.8 VDC
Must Release Voltage	1.8 VDC	1.8 VDC
Operate Time	7 ms	7 ms
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	5 ms	5 ms
Switching Voltage	75 VDC	75 VDC
Termination Style	Plug In, Quick Connect - 0.250" (6.3mm)	Plug In, Quick Connect - 0.250" (6.3mm)

AZ9731 Series

RELAY AUTOMOTIVE SPDT 30A 12V

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Must Operate Voltage	Switching Voltage	Coil Power	Coil Resistance	Contact Form	Release Time	Contact Material	Coil Voltage	Coil Current	Contact Rating (Current)	Features	Must Release Voltage	Coil Type	Mounting Type
American Zettler AZ9731-1C-12DC3R1	Plug In, Quick Connect - 0.250" (6.3mm)	125 °C	-40 °C	7 ms	7.8 VDC	75 VDC	1.6 W	90 Ohms	SPDT (1 Form C)	5 ms	Silver Tin Oxide (AgSnO)	12 VDC	133.3 mA	30 A	MINI-ISO, Resistor	1.8 VDC	Non Latching	Socketable
American Zettler AZ9731-1C-12DC3	Plug In, Quick Connect - 0.250" (6.3mm)	125 °C	-40 °C	7 ms	7.8 VDC	75 VDC	1.6 W	90 Ohms	SPDT (1 Form C)	5 ms	Silver Tin Oxide (AgSnO)	12 VDC	133.3 mA	30 A	MINI-ISO	1.8 VDC	Non Latching	Socketable
American Zettler AZ9731-1C-12DC4	Plug In, Quick Connect - 0.250" (6.3mm)	125 °C	-40 °C	7 ms	7.8 VDC	75 VDC	1.6 W	90 Ohms	SPDT (1 Form C)	5 ms	Silver Tin Oxide (AgSnO)	12 VDC	133.3 mA	30 A	MINI-ISO, Shrouded w/ Steel Bracket	1.8 VDC	Non Latching	Chassis Mount
American Zettler AZ9731-1C-12DC4R1	Plug In, Quick Connect - 0.250" (6.3mm)	125 °C	-40 °C	7 ms	7.8 VDC	75 VDC	1.6 W	90 Ohms	SPDT (1 Form C)	5 ms	Silver Tin Oxide (AgSnO)	12 VDC	133.3 mA	30 A	MINI-ISO, Resistor, Shrouded w/ Steel Bracket Sealed - Epoxy	1.8 VDC	Non Latching	Chassis Mount
American Zettler AZ9731-1A-12DC4	Plug In, Quick Connect - 0.250" (6.3mm)	125 °C	-40 °C	7 ms	7.8 VDC	75 VDC	1.6 W	90 Ohms	SPST-NO (1 Form A)	5 ms	Silver Tin Oxide (AgSnO)	12 VDC	133.3 mA	40 A	MINI-ISO, Shrouded w/ Steel Bracket	1.8 VDC	Non Latching	Chassis Mount
American Zettler AZ9731-1A-12DC3	Plug In, Quick Connect - 0.250" (6.3mm)	125 °C	-40 °C	7 ms	7.8 VDC	75 VDC	1.6 W	90 Ohms	SPST-NO (1 Form A)	5 ms	Silver Tin Oxide (AgSnO)	12 VDC	133.3 mA	40 A	MINI-ISO	1.8 VDC	Non Latching	Socketable
American Zettler AZ9731-1A-12DC1R1	Plug In, Quick Connect - 0.250" (6.3mm)	125 °C	-40 °C	7 ms	7.8 VDC	75 VDC	1.6 W	90 Ohms	SPST-NO (1 Form A)	5 ms	Silver Tin Oxide (AgSnO)	12 VDC	133.3 mA	40 A	MINI-ISO w/ Steel Mounting Bracket, Resistor	1.8 VDC	Non Latching	Chassis Mount
American Zettler AZ9731-1C-12DC1	Plug In, Quick Connect - 0.250" (6.3mm)	125 °C	-40 °C	7 ms	7.8 VDC	75 VDC	1.6 W	90 Ohms	SPDT (1 Form C)	5 ms	Silver Tin Oxide (AgSnO)	12 VDC	133.3 mA	30 A	MINI-ISO w/ Steel Mounting Bracket	1.8 VDC	Non Latching	Chassis Mount
American Zettler AZ9731-1C-12DC1R1	Plug In, Quick Connect - 0.250" (6.3mm)	125 °C	-40 °C	7 ms	7.8 VDC	75 VDC	1.6 W	90 Ohms	SPDT (1 Form C)	5 ms	Silver Tin Oxide (AgSnO)	12 VDC	133.3 mA	30 A	MINI-ISO w/ Steel Mounting Bracket, Resistor	1.8 VDC	Non Latching	Chassis Mount
American Zettler AZ9731-1A-12DC3R1	Plug In, Quick Connect - 0.250" (6.3mm)	125 °C	-40 °C	7 ms	7.8 VDC	75 VDC	1.6 W	90 Ohms	SPST-NO (1 Form A)	5 ms	Silver Tin Oxide (AgSnO)	12 VDC	133.3 mA	40 A	MINI-ISO, Resistor	1.8 VDC	Non Latching	Socketable
