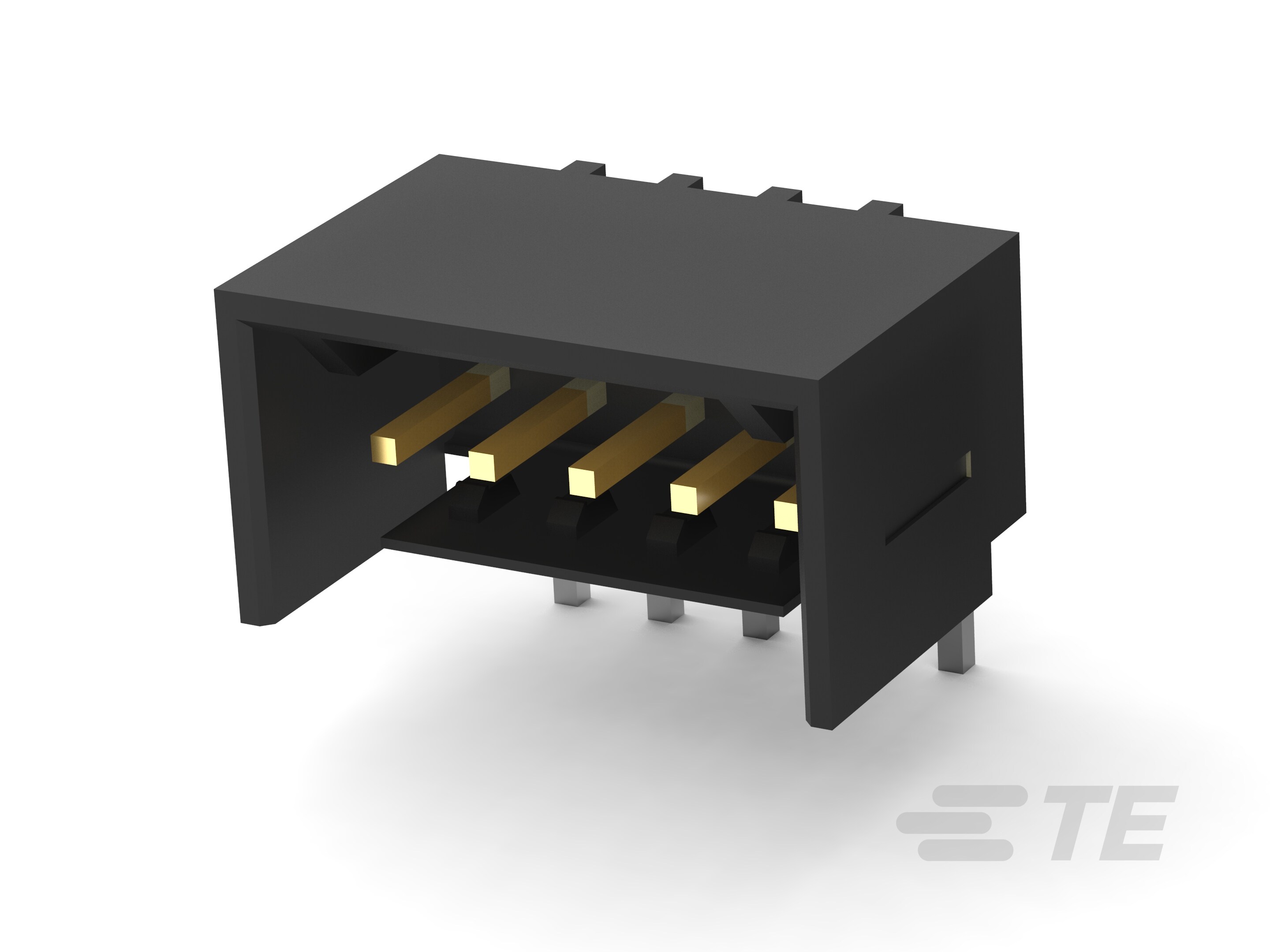

Specification	2-644489-5

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.2 in
Contact Length - Post	0.13 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	0.343 in
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	5
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

644489 Series

Part	Shrouding	Insulation Color	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Type	Style	Number of Rows	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Pitch - Mating	Contact Finish - Mating	Number of Positions Loaded	Insulation Height	Insulation Material	Mounting Type	Connector Type	Current Rating	Fastening Type	Contact Length - Post	Number of Positions	Termination	Contact Finish - Post	Voltage Rating	Contact Shape	Applications
TE Connectivity AMP Connectors 644489-6	Shrouded - 4 Wall	Black	0.2 in	30 µin	Copper Alloy	Male Pin	Board Cable/Wire	1	UL94 V-0	-55 °C	105 °C	0.1 in	Gold	All	0.343 in	Polyester	Right Angle Through Hole	Header	Varies by Wire Gauge	Friction Lock	0.13 in	6	Solder	Tin-Lead	250 V	Square	General Purpose
TE Connectivity AMP Connectors 2-644489-5	Shrouded - 4 Wall	Black	0.2 in	30 µin	Copper Alloy	Male Pin	Board Cable/Wire	1	UL94 V-0	-55 °C	105 °C	0.1 in	Gold	All	0.343 in	Polyester	Right Angle Through Hole	Header	Varies by Wire Gauge	Friction Lock	0.13 in	5	Solder	Tin	250 V	Square	General Purpose
TE Connectivity AMP Connectors 2-644489-8	Shrouded - 4 Wall	Black	0.2 in	30 µin	Copper Alloy	Male Pin	Board Cable/Wire	1	UL94 V-0	-55 °C	105 °C	0.1 in	Gold	All	0.343 in	Polyester	Right Angle Through Hole	Header	Varies by Wire Gauge	Friction Lock	0.13 in	8	Solder	Tin	250 V	Square	General Purpose
