17282-3SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	17282-3SG-300	17282-3S Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 VAC	600 VAC

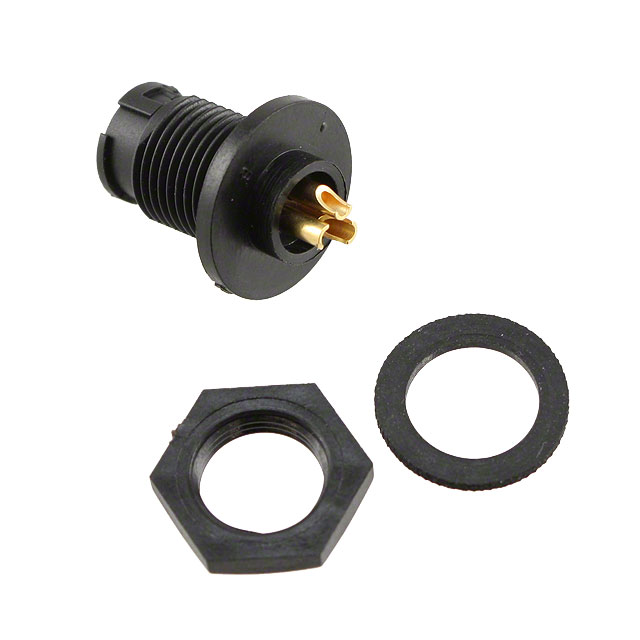

CONN RCPT FMALE 3P GOLD SLDR CUP

Part	Contact Material	Current Rating (Amps)	Orientation	Voltage Rating	Material Flammability Rating	Fastening Type	Shielding	Primary Material	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Connector Type	Color	Ingress Protection	Applications
Conxall/Switchcraft 17282-3SG-3ES	Copper Alloy	7.5 A	Keyed	600 VAC	UL94 HB	Bayonet Lock	Unshielded	Plastic	Gold	85 °C	-40 °C	Bulkhead - Front Side Nut	Receptacle, Female Sockets	Black	IP67 - Dust Tight, Waterproof	Data, Industrial, Instrumentation, Medical
Conxall/Switchcraft 17282-3SG-300	Copper Alloy	7.5 A	Keyed	600 VAC	UL94 HB	Bayonet Lock	Unshielded	Plastic	Gold	85 °C	-40 °C	Bulkhead - Front Side Nut	Receptacle, Female Sockets	Black	IP67 - Dust Tight, Waterproof	Data, Industrial, Instrumentation, Medical
