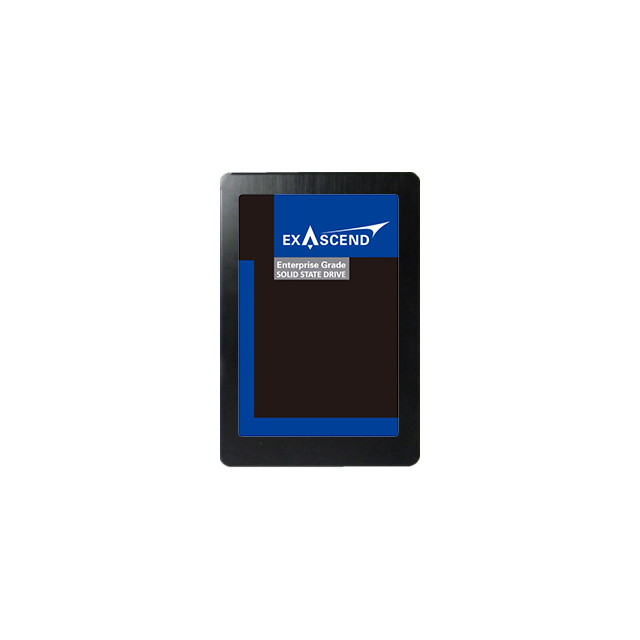

EXSAM1A120GV025CCE

Active

ExAscend

SSD 120GB 2.5" TLC SATAIII-5V

Search across all available documentation for this part.

Active

ExAscend

SSD 120GB 2.5" TLC SATAIII-5V

Technical Specifications

Parameters and characteristics for this part

Specification	EXSAM1A120GV025CCE

Form Factor	2.5 in
Memory Size	120 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (TLC)
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Speed - Read	540 MB/s
Speed - Write	520 MB/s
Type	SATA III
Voltage - Supply	5 V, 3.3 V

SSD 120GB 2.5" TLC SATAIII-5V

Part	Speed - Write	Memory Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor	Voltage - Supply	Memory Size	Speed - Read
ExAscend EXSAM1A120GV025CCE	520 MB/s	Solid State Drive (SSD) FLASH - NAND (TLC)	SATA III	75 ░C	0 °C	2.5 in	3.3 V, 5 V	120 GB	540 MB/s

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State Drive (SSD) FLASH - NAND (TLC) 120GB SATA III 2.5" 3.3V, 5V

Technical documentation and resources

No documents available
