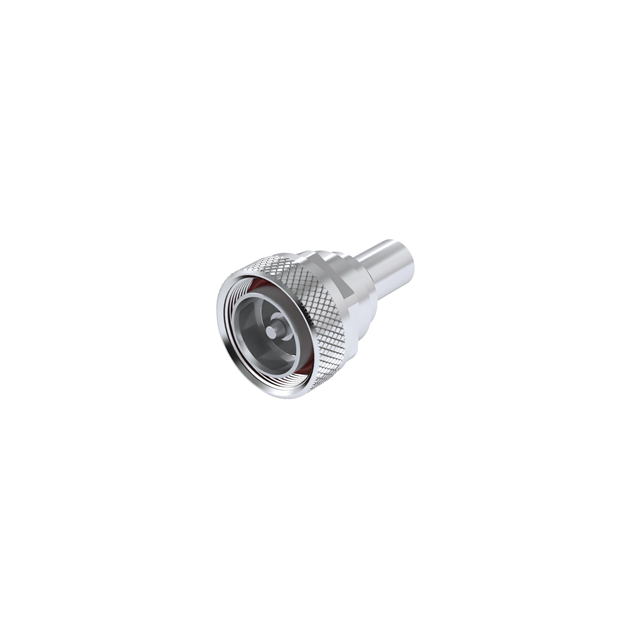

R185074000

Active

Radiall USA, Inc.

7-16 / STRAIGHT PLUG CRIMP TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

7-16 / STRAIGHT PLUG CRIMP TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R185074000

Body Finish	White Bronze
Body Material	Brass
Cable Group	393
Cable Group	RG-213
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	7/16 DIN
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	1400 V

Part	Housing Color	Shield Termination	Body Material	Connector Style	Ingress Protection	Mounting Type	Contact Termination	Dielectric Material	Mating Cycles	Center Contact Plating	Body Finish	Cable Group	Cable Group	Center Contact Material	Impedance	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Voltage Rating	Connector Type
Radiall USA, Inc. R185074000	Silver	Crimp	Brass	7/16 DIN	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Crimp	Polytetrafluoroethylene (PTFE)	500	Silver	White Bronze	393	RG-213	Brass	50 Ohms	7.5 GHz	155 °C	-55 °C	1	1400 V	Male Pin Plug
Radiall USA, Inc. R185077000W	Silver	Crimp	Brass	7/16 DIN	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Crimp	Polytetrafluoroethylene (PTFE)	500	Silver	White Bronze		225 RG-214	Brass	50 Ohms	7.5 GHz	155 °C	-55 °C	1	1400 V	Male Pin Plug
Radiall USA, Inc. R185074000W	Silver	Crimp	Brass	7/16 DIN	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Crimp	Polytetrafluoroethylene (PTFE)	500	Silver	White Bronze	393	RG-213	Brass	50 Ohms	7.5 GHz	155 °C	-55 °C	1	1400 V	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 25.90

General part information

7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
