704.032.7

Active

EAO

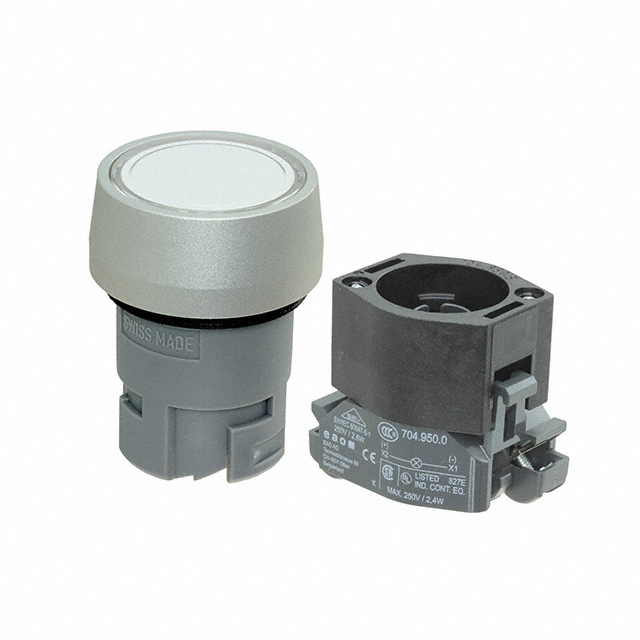

(704.032.7X) LIGHTED PUSHBUTTON/ MOM/ RND/ W-CLEAR LENS & NAT ALUM. BEZEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

EAO

(704.032.7X) LIGHTED PUSHBUTTON/ MOM/ RND/ W-CLEAR LENS & NAT ALUM. BEZEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.032.7	704.032 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Actuator Type	Pushbutton, Round	Pushbutton, Round
Illumination	Illuminated	Illuminated, Illuminated - Green, Illuminated - Yellow
Panel Cutout Dimensions	22.3 mm	22.3 - 30.5 mm
Requires	Illumination Source, Contact Block(s)	Illumination Source, Contact Block(s)
Type	Momentary	Momentary

CONFIG SW BODY PUSHBUTTON ILLUM

Part	Requires	(Select First, Then Apply Filters) Compatible Series	Actuator Type	Type	Panel Cutout Dimensions	Illumination
EAO 704.032.2	Contact Block(s), Illumination Source	04, EAO	Pushbutton, Round	Momentary	22.3 mm
EAO 704.032.7	Contact Block(s), Illumination Source	04, EAO	Pushbutton, Round	Momentary	22.3 mm	Illuminated
EAO 704.032.5	Contact Block(s), Illumination Source	04, EAO	Pushbutton, Round	Momentary	22.3 mm	Illuminated - Green
EAO 704.032.218	Contact Block(s), Illumination Source	04, EAO	Pushbutton, Round	Momentary	30.5 mm
EAO 704.032.418	Contact Block(s), Illumination Source	04, EAO	Pushbutton, Round	Momentary	30.5 mm	Illuminated - Yellow
EAO 704.032.4	Contact Block(s), Illumination Source	04, EAO	Pushbutton, Round	Momentary	22.3 mm	Illuminated - Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Pushbutton, Round Illuminated
