QCM019PC2DC024B

Active

TE Connectivity Aerospace, Defense and Marine

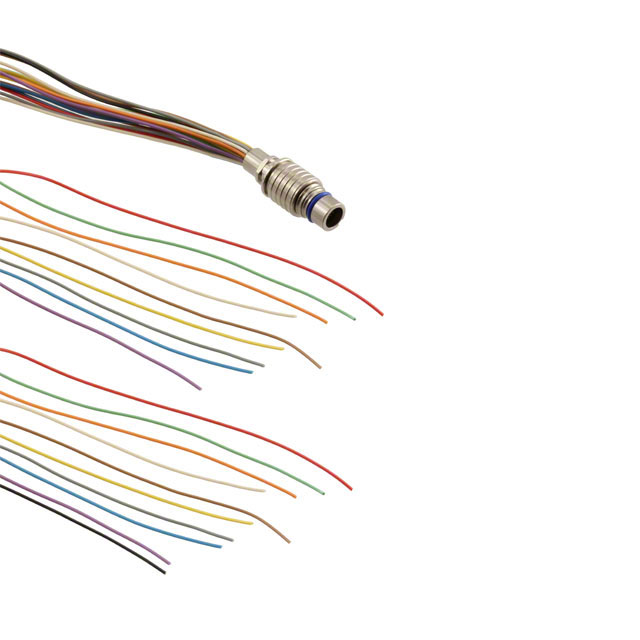

CIRC CBL 19POS PLUG TO WIRE 2'

Deep-Dive with AI

Search across all available documentation for this part.

QCM019PC2DC024B

Active

TE Connectivity Aerospace, Defense and Marine

CIRC CBL 19POS PLUG TO WIRE 2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 374.52

Description

General part information

QCM019 Series

Circular Cable Assembly Unshielded 2.00' (609.60mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QCM019PC2DC024B	QCM019 Series

	-	-
1st Connector Gender	Male Pins	Female Sockets, Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Panel Mount, Free Hanging (In-Line)
1st Connector Number of Positions	19	19
1st Connector Number of Positions Loaded	All	All
1st Connector Type	Plug	Receptacle, Plug
2nd Connector Type	Wire Leads	Wire Leads
Assembly Configuration	Standard	Standard
Cable Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Cable Type	Individual	Individual
Color	Multiple	Multiple
Connector Type	-	Receptacle, Female Sockets
Contact Finish - Mating	-	Gold
Fastening Type	-	Push-Pull
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Length	-	1 ft
Length	-	304.8 mm
Length [x]	2 '	1.5 - 2 '
Length [x]	609.6 mm	457.2 - 609.6 mm
Mounting Feature	-	Bulkhead - Rear Side Nut
Number of Positions	-	19
Operating Temperature	-	-55 °C
Operating Temperature	-	200 °C
Orientation	-	Keyed
Primary Material	-	Metal
Shell Finish	-	Electroless Nickel
Shell Material	-	Aluminum
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Usage	Industrial Environments	Industrial Environments

QCM019 Series

CBL CIRC 19POS FEM TO WIRE 0.5'

Part	1st Connector Mounting Type	1st Connector Type	1st Connector Number of Positions Loaded	Assembly Configuration	2nd Connector Type	Cable Type	1st Connector Number of Positions	Color	Usage	1st Connector Gender	Shielding	Cable Material	Length [x]	Length [x]	Length	Length	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Orientation	Contact Finish - Mating	Ingress Protection	Fastening Type	Primary Material	Connector Type	Termination	Mounting Feature	Shell Material
TE Connectivity Aerospace, Defense and Marine QCM019SC2DC006F	Panel Mount	Receptacle	All	Standard	Wire Leads	Individual	19	Multiple	Industrial Environments	Female Sockets	Unshielded	Polytetrafluoroethylene (PTFE)
TE Connectivity Aerospace, Defense and Marine QCM019SC2DM052PB
TE Connectivity Aerospace, Defense and Marine QCM019PC2DC018B
TE Connectivity Aerospace, Defense and Marine QCM019SC2DC006P	Panel Mount	Receptacle	All	Standard	Wire Leads	Individual	19	Multiple	Industrial Environments	Female Sockets	Unshielded	Polytetrafluoroethylene (PTFE)
TE Connectivity Aerospace, Defense and Marine QCM019PC2DC024B	Free Hanging (In-Line)	Plug	All	Standard	Wire Leads	Individual	19	Multiple	Industrial Environments	Male Pins	Unshielded	Polytetrafluoroethylene (PTFE)	2 '	609.6 mm
TE Connectivity Aerospace, Defense and Marine QCM019PC0DC012	Free Hanging (In-Line)	Plug	All	Standard	Wire Leads	Individual	19	Multiple	Industrial Environments	Male Pins	Unshielded	Polytetrafluoroethylene (PTFE)			1 ft	304.8 mm
TE Connectivity Aerospace, Defense and Marine QCM01912690M5P
TE Connectivity Aerospace, Defense and Marine QCM019PC2DC006	Free Hanging (In-Line)	Plug	All	Standard	Wire Leads	Individual	19	Multiple	Industrial Environments	Male Pins	Unshielded	Polytetrafluoroethylene (PTFE)
TE Connectivity Aerospace, Defense and Marine QCM019SC2DC180F
TE Connectivity Aerospace, Defense and Marine QCM019SC2DC003F																	19	-55 °C	200 °C	Electroless Nickel	Keyed	Gold	IP67 - Dust Tight, Waterproof	Push-Pull	Metal	Receptacle, Female Sockets	Crimp	Bulkhead - Rear Side Nut	Aluminum
