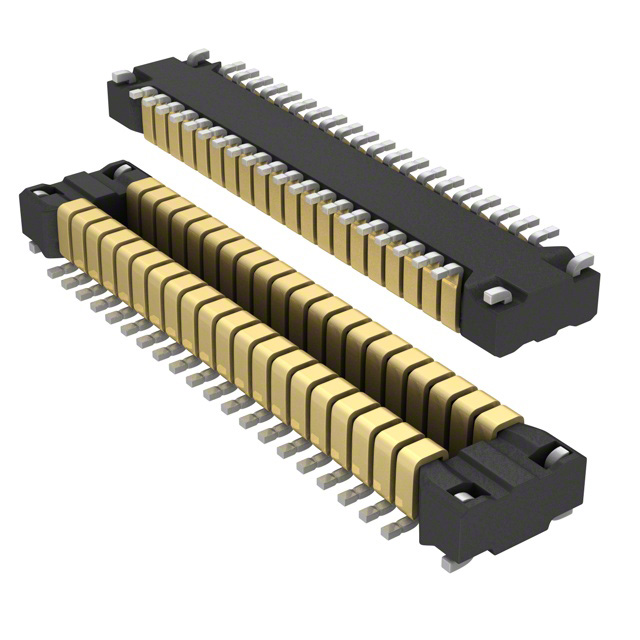

AXT640124A

Active

Panasonic Electric Works

CONN HDR 40POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT640124A

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.84 mm
Height Above Board [z]	0.033 "
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Connector Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Number of Positions	Mounting Type	Height Above Board [z]	Height Above Board [z]	Features
Panasonic Electric Works AXT640124A	Header Center Strip Contacts	1 mm	0.016 in	0.4 mm	2	Gold	40	Surface Mount	0.84 mm	0.033 "	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	500	$ 1.38

General part information

40 Position Connector Header, Center Strip Contacts Surface Mount Gold

Technical documentation and resources

No documents available
