TS2940CP50 ROG

Active

Taiwan Semiconductor Corporation

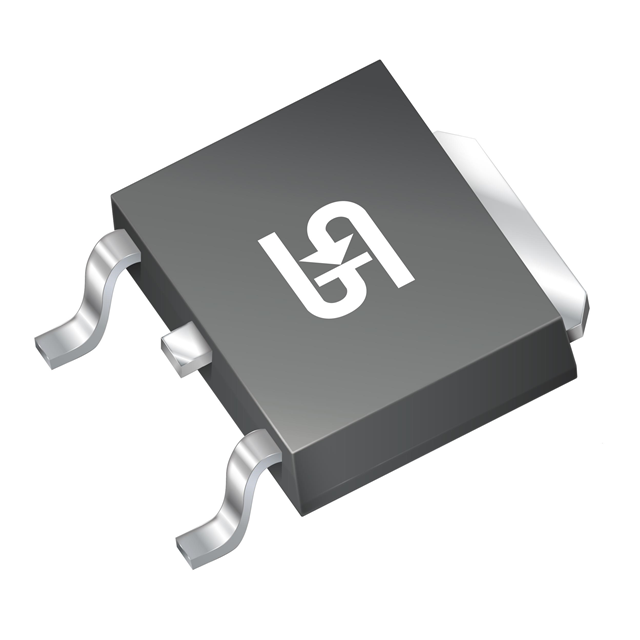

IC REG LINEAR 5V 1A TO252

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TS2940CP50 ROG

Active

Taiwan Semiconductor Corporation

IC REG LINEAR 5V 1A TO252

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TS2940CP50 ROG

Current - Output	1 A
Current - Quiescent (Iq)	15 mA
Current - Supply (Max)	110 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Protection Features	Transient Voltage, Thermal Shutdown, Over Voltage
Supplier Device Package	TO-252 (DPAK)
Voltage - Input (Max) [Max]	26 V
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	0.8 V

TS2940 Series

Part	Output Configuration	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Protection Features	Current - Output	Voltage - Input (Max) [Max]	Supplier Device Package	Voltage Dropout (Max) [Max]	Number of Regulators	Output Type	Current - Supply (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case
Taiwan Semiconductor Corporation TS2940CM33 RNG	Positive	3.3 V	15 mA	Over Voltage Thermal Shutdown Transient Voltage	1 A	26 V	TO-263AB (D2PAK)	0.8 V	1	1.81 mOhm	110 mA	-40 °C	125 ¯C	Surface Mount	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Taiwan Semiconductor Corporation TS2940CP50 ROG	Positive	5 V	15 mA	Over Voltage Thermal Shutdown Transient Voltage	1 A	26 V	TO-252 (DPAK)	0.8 V	1	1.81 mOhm	110 mA	-40 °C	125 ¯C	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3
Taiwan Semiconductor Corporation TS2940CZ50 C0G	Positive	5 V	15 mA	Over Voltage Thermal Shutdown Transient Voltage	1 A	26 V	TO-220	0.8 V	1	1.81 mOhm	110 mA	-40 °C	125 ¯C	Through Hole	TO-220-3
Taiwan Semiconductor Corporation TS2940CM50 RNG	Positive	5 V	15 mA	Over Voltage Thermal Shutdown Transient Voltage	1 A	26 V	TO-263AB (D2PAK)	0.8 V	1	1.81 mOhm	110 mA	-40 °C	125 ¯C	Surface Mount	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Taiwan Semiconductor Corporation TS2940CW33 RPG	Positive	3.3 V	15 mA	Over Voltage Thermal Shutdown Transient Voltage	1 A	26 V	SOT-223	0.8 V	1	1.81 mOhm	110 mA	-40 °C	125 ¯C	Surface Mount	TO-261-4 TO-261AA
Taiwan Semiconductor Corporation TS2940CZ33 C0G	Positive	3.3 V	15 mA	Over Voltage Thermal Shutdown Transient Voltage	1 A	26 V	TO-220	0.8 V	1	1.81 mOhm	110 mA	-40 °C	125 ¯C	Through Hole	TO-220-3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.42
		10	$ 1.55
		25	$ 1.33
		100	$ 1.07
		250	$ 0.95
		500	$ 0.87
		1000	$ 0.81
	Tape & Reel (TR)	2500	$ 0.70
		5000	$ 0.68
		12500	$ 0.65

Description

General part information

TS2940 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252 (DPAK)
