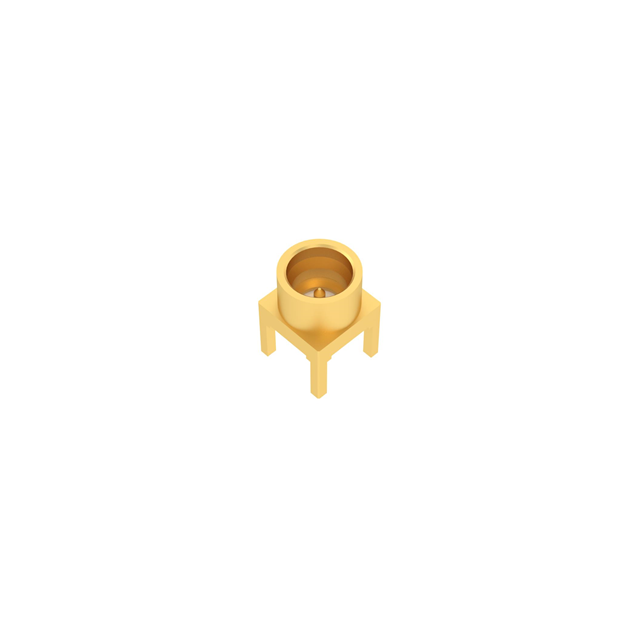

Specification	R222M00160

Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMP
Connector Type	Receptacle, Male Pin
Contact Termination	Solder
Fastening Type	Snap-On
Frequency - Max	6000 MHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Solder
Voltage Rating	330 V

R222M Series

Part	Voltage Rating	Center Contact Plating	Mating Cycles	Body Finish	Body Material	Operating Temperature (Max)	Operating Temperature (Min)	Housing Color	Frequency - Max	Mounting Type	Connector Style	Fastening Type	Impedance	Shield Termination	Contact Termination	Center Contact Material	Connector Type	Number of Ports	Dielectric Material	Cable Group	Style	Adapter Series	Center Gender	Convert From (Adapter End)	Convert To (Adapter End)	Adapter Type	Conversion Type
Radiall USA, Inc. R222M00160	330 V	Gold	100 cycles	Gold	Beryllium Copper Brass	165 °C	-55 °C	Gold	6000 MHz	Through Hole	SMP	Snap-On	50 Ohm	Solder	Solder	Brass	Male Pin Receptacle	1
Radiall USA, Inc. R222M10107
Radiall USA, Inc. R222M00080W	335 V	Gold	100 cycles	Gold	Brass	165 °C	-55 °C	Gold	6000 MHz	Through Hole	SMP	Snap-On	50 Ohm	Solder	Solder	Brass	Male Pin Receptacle	1	Liquid Crystal Polymer (LCP) Polyetheretherketone (PEEK)
Radiall USA, Inc. R222M80400	335 V	Gold	100 cycles	Gold	Brass	165 °C	-55 °C	Gold	6000 MHz	Free Hanging (In-Line)	SMP	Snap-On	50 Ohm	Crimp	Crimp	Beryllium Copper	Female Socket Plug	1	Polytetrafluoroethylene (PTFE)	316 RG-174
Radiall USA, Inc. R222M00720	335 V	Gold	100 cycles	Gold	Brass	165 °C	-55 °C	Gold	6000 MHz	Through Hole	SMP	Snap-On	50 Ohm	Solder	Solder	Brass	Male Pin Receptacle	1	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R222M40050W		Gold	100 cycles	Gold	Brass	165 °C	-55 °C		6000 MHz	Free Hanging (In-Line)		Snap-On	50 Ohm			Beryllium Copper			Polytetrafluoroethylene (PTFE)		Straight	SMP to SMP	Female	Female Socket SMP Jack	Female Socket SMP Jack	Jack to Jack	Same Series
Radiall USA, Inc. R222M00080	335 V	Gold	100 cycles	Gold	Brass	165 °C	-55 °C	Gold	6000 MHz	Through Hole	SMP	Snap-On	50 Ohm	Solder	Solder	Brass	Male Pin Receptacle	1	Polyetheretherketone (PEEK)
Radiall USA, Inc. R222M00740	335 V	Gold	100 cycles	Gold	Brass	165 °C	-55 °C	Gold	10 GHz	Surface Mount	SMP	Snap-On	50 Ohm	Solder	Solder	Brass	Male Pin Receptacle	1	Liquid Crystal Polymer (LCP) Polyetheretherketone (PEEK)
Radiall USA, Inc. R222M00740W	335 V	Gold	100 cycles	Gold	Brass	165 °C	-55 °C	Gold	6000 MHz	Surface Mount	SMP	Snap-On	50 Ohm	Solder	Solder	Brass	Male Pin Receptacle	1	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R222M46032		Gold	100 cycles	Gold	Beryllium Copper	165 °C	-55 °C		10 GHz	Free Hanging (In-Line)		Snap-On	50 Ohm			Beryllium Copper			Polytetrafluoroethylene (PTFE)		Straight	SMP to SMP	Female	Female Socket SMP Jack	Female Socket SMP Jack	Jack to Jack	Same Series
