M39029/56-350
ActiveAmphenol Aerospace Operations

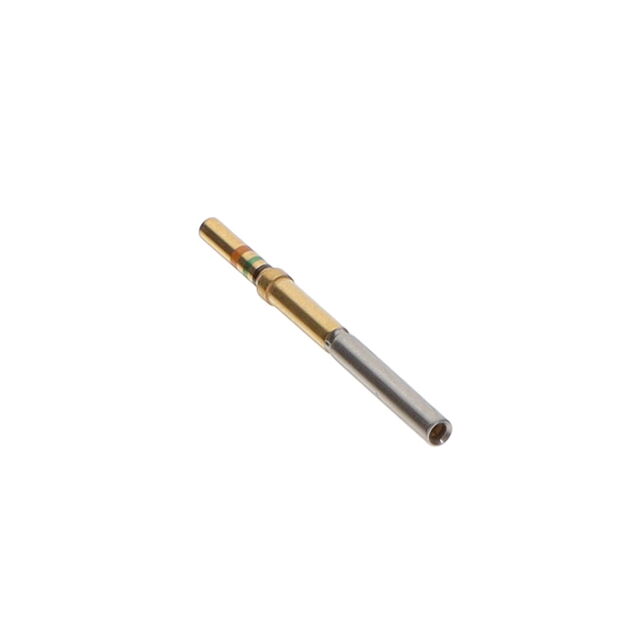

CONTACT SOCKET 22-26AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M39029/56-350
ActiveAmphenol Aerospace Operations
CONTACT SOCKET 22-26AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/56-350 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Size | 22 |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Signal |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.67 | |
| 10 | $ 3.55 | |||
| 25 | $ 3.45 | |||
| 50 | $ 3.35 | |||
| 100 | $ 3.25 | |||
| 250 | $ 3.16 | |||
| 500 | $ 3.08 | |||
| 1000 | $ 3.00 | |||
| 1500 | $ 2.96 | |||
| Bulk | 1 | $ 4.33 | ||
| 10 | $ 3.31 | |||
| 25 | $ 2.99 | |||
| 50 | $ 2.76 | |||
| 100 | $ 2.56 | |||
| 250 | $ 2.32 | |||
| 500 | $ 2.16 | |||
| 1000 | $ 2.02 | |||
| 2500 | $ 1.85 | |||
Description
General part information
M39029/56 Series
Socket Contact 22-26 AWG Size 22 Crimp Gold
