982-D/04

Active

WECO Electrical Connectors Inc.

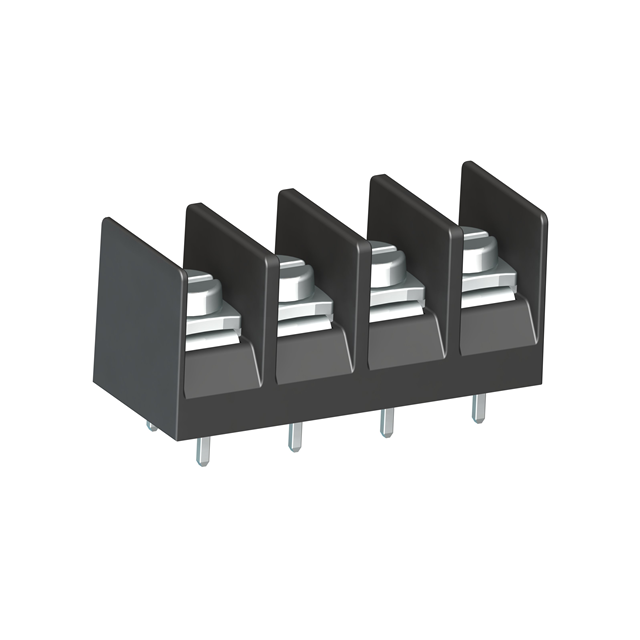

TERM STRIP BARRIER 4 POLE 9.52 M

Search across all available documentation for this part.

Active

WECO Electrical Connectors Inc.

TERM STRIP BARRIER 4 POLE 9.52 M

Technical Specifications

Parameters and characteristics for this part

Specification	982-D/04

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Color	Gray
Current Rating (Amps)	20 A
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	4
Number of Rows	1
Number of Wire Entries	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	12 AWG

TERM STRIP BARRIER 4 POLE 9.52 M

Part	Material Flammability Rating	Pitch [x]	Pitch [x]	Material - Insulation	Current Rating (Amps)	Top Termination	Terminal Screw Finish	Color	Number of Rows	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Terminal Screw Material	Barrier Type	Mounting Type	Number of Wire Entries	Terminal Block Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Bottom Termination
WECO Electrical Connectors Inc. 982-D/04	UL94 V-0	9.53 mm	0.375 in	Nylon, Polyamide (PA)	20 A	Screws	Zinc	Gray	1	12 AWG	20 AWG	4	Steel	2 Wall (Dual)	Through Hole	4	Barrier Block	300 VDC	-40 °C	105 ░C	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
