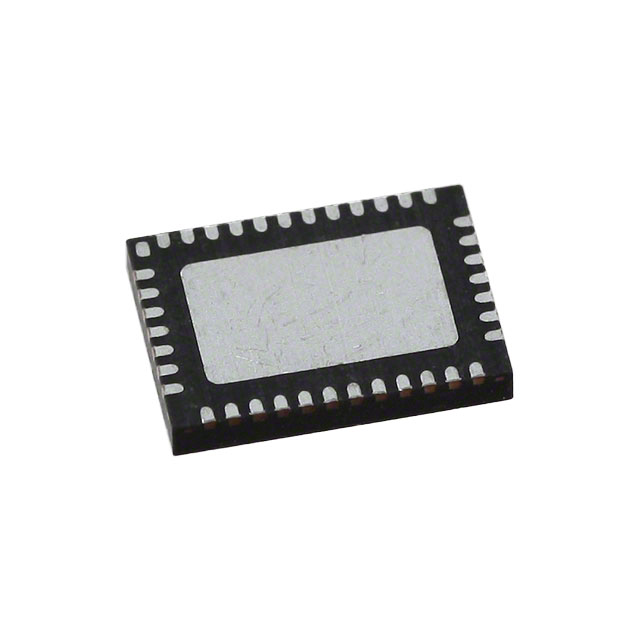

LX2260ILQ-TR
ObsoleteMicrosemi Corporation
IC LED DRVR CTRL PWM 500MA 38QFN
Deep-Dive with AI
Search across all available documentation for this part.
LX2260ILQ-TR
ObsoleteMicrosemi Corporation
IC LED DRVR CTRL PWM 500MA 38QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LX2260ILQ-TR |
|---|---|
| Current - Output / Channel | 500 mA |
| Dimming | Analog, PWM |
| Frequency | 670 kHz |
| Grade | Automotive |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 38-VFQFN Exposed Pad |
| Qualification | AEC-Q100 |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Type | DC DC Controller |
| Voltage - Supply (Max) [Max] | 28 V |
| Voltage - Supply (Min) [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LX2260 Series
LED Driver IC 4 Output DC DC Controller Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 500mA 38-QFN (5x7)
Documents
Technical documentation and resources
No documents available
