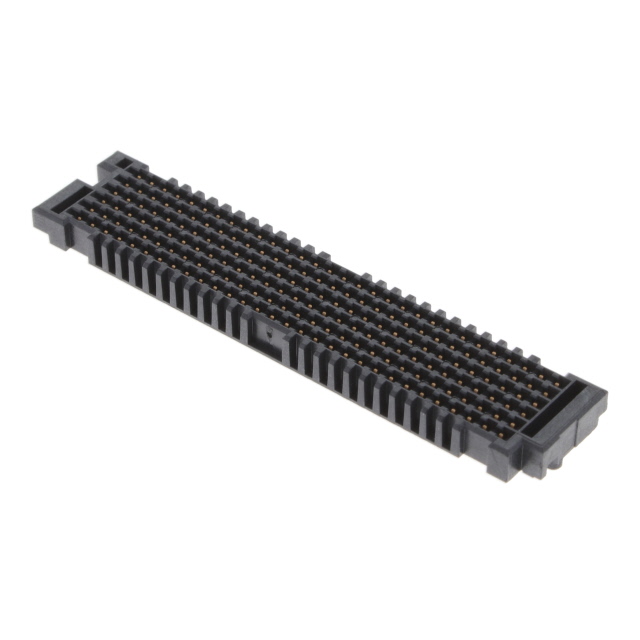

LPAF-30-03.0-L-06-2-K-TR
ActiveSamtec Inc.
CONN, STACKING, RCPT, 180P, 6ROW, 1.27MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
LPAF-30-03.0-L-06-2-K-TR
ActiveSamtec Inc.
CONN, STACKING, RCPT, 180P, 6ROW, 1.27MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LPAF-30-03.0-L-06-2-K-TR |
|---|---|
| Connector Type | Female Sockets, Array |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Pick and Place, Board Guide |
| Height Above Board [z] | 2.79 mm |
| Height Above Board [z] | 0.11 " |
| Mated Stacking Heights | 4 mm, 4.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 180 |
| Number of Rows | 6 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LPAF-30 Series
180 Position Connector Array, Female Sockets Surface Mount Gold
