1133C SL002

Active

ALPHA WIRE

MULT-PAIR 6COND 18AWG SLATE 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULT-PAIR 6COND 18AWG SLATE 500'

Technical Specifications

Parameters and characteristics for this part

Specification	1133C SL002

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.356 in
Jacket (Insulation) Diameter [diameter]	9.04 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

MULT-PAIR 6COND 18AWG SLATE 500'

Part	Voltage	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Cable Type	Conductor Insulation	Length [x]	Length [x]	Jacket Color	Usage	Jacket (Insulation) Material	Wire Gauge
ALPHA WIRE 1133C SL002	300 V	6	0.94 mm	0.037 in	-20 C	80 C	0.356 in	9.04 mm	16	30 AWG	Copper, Tinned	Multi-Pair	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	Slate	Communication, Control	Poly-Vinyl Chloride (PVC)	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

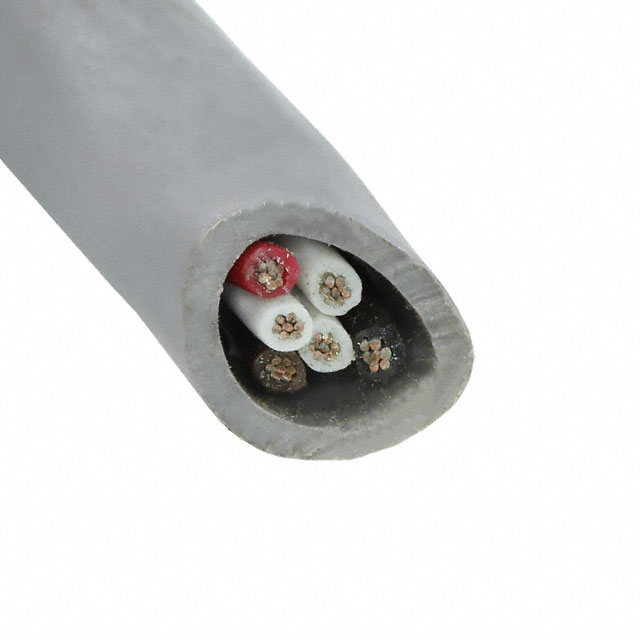

6 (3 Pair Twisted) Conductor Multi-Pair Cable Slate 18 AWG 500.0' (152.4m)
