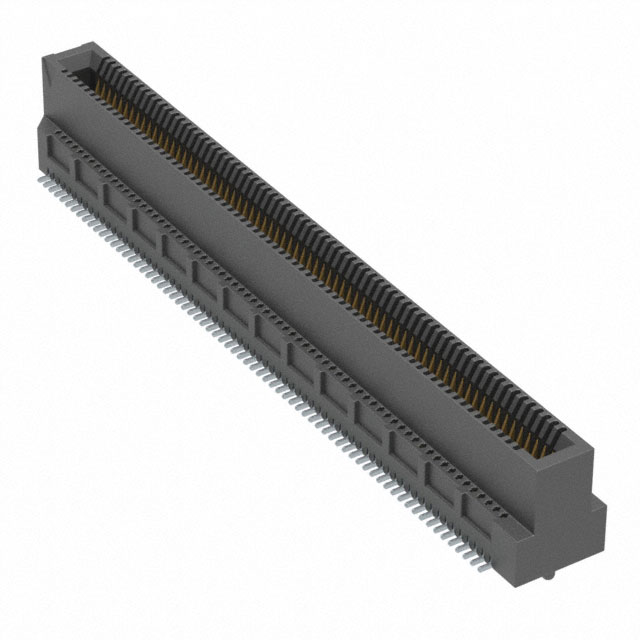

MEC8-170-02-L-DV-A

Active

Samtec Inc.

CARD EDGE CONN, DUAL, 140POS, TH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMEC8 Series Other Related Documents 03 Datasheet +2

MEC8-170-02-L-DV-A

Active

Samtec Inc.

CARD EDGE CONN, DUAL, 140POS, TH ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsMEC8 Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEC8-170-02-L-DV-A

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Contact Type	Hairpin Bellows
Features	Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	140
Number of Positions/Bay/Row [custom]	70
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Read Out	Dual
Termination	Solder

MEC8-170 Series

Part	Features	Termination	Pitch [x]	Pitch [x]	Card Type	Color	Number of Positions	Read Out	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Card Thickness	Card Thickness	Mounting Type	Contact Type	Number of Rows	Contact Material	Number of Positions/Bay/Row [custom]
Samtec Inc. MEC8-170-01-L-DV-A-K	Board Guide Pick and Place	Solder	0.8 mm	0.031 in	Non Specified - Dual Edge	Black	140	Dual	10 Áin	0.25 Ám	Gold	Female	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Surface Mount	Hairpin Bellows	2	Phosphor Bronze
Samtec Inc. MEC8-170-02-L-DV-A	Board Guide	Solder	0.8 mm	0.031 in	Non Specified - Dual Edge	Black	140	Dual	10 Áin	0.25 Ám	Gold	Female	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Surface Mount	Hairpin Bellows	2	Phosphor Bronze	70
Samtec Inc. MEC8-170-02-S-DV-A-K-TR	Board Guide	Solder	0.8 mm	0.031 in	Non Specified - Dual Edge	Black	140	Dual	30 Áin	0.76 Ám	Gold	Female	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Surface Mount	Hairpin Bellows	2	Phosphor Bronze
Samtec Inc. MEC8-170-02-L-DV-A-K-TR	Board Guide	Solder	0.8 mm	0.031 in	Non Specified - Dual Edge	Black	140	Dual	10 Áin	0.25 Ám	Gold	Female	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Surface Mount	Hairpin Bellows	2	Phosphor Bronze
Samtec Inc. MEC8-170-02-S-DV-A-K	Board Guide	Solder	0.8 mm	0.031 in	Non Specified - Dual Edge	Black	140	Dual	30 Áin	0.76 Ám	Gold	Female	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Surface Mount	Hairpin Bellows	2	Phosphor Bronze
Samtec Inc. MEC8-170-02-S-DV-A	Board Guide	Solder	0.8 mm	0.031 in	Non Specified - Dual Edge	Black	140	Dual	30 Áin	0.76 Ám	Gold	Female	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Surface Mount	Hairpin Bellows	2	Phosphor Bronze
Samtec Inc. MEC8-170-02-LM-DV-A-K-TR	Board Guide	Solder	0.8 mm	0.031 in	Non Specified - Dual Edge	Black	140	Dual	10 Áin	0.25 Ám	Gold	Female	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Surface Mount	Hairpin Bellows	2	Phosphor Bronze
Samtec Inc. MEC8-170-01-L-D-EM2		Solder	0.8 mm	0.031 in	Non Specified - Dual Edge	Black	140	Dual	10 Áin	0.25 Ám	Gold	Female	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Board Edge Straddle Mount	Hairpin Bellows	2	Phosphor Bronze
Samtec Inc. MEC8-170-02-L-D-EM2		Solder	0.8 mm	0.031 in	Non Specified - Dual Edge	Black	140	Dual	10 Áin	0.25 Ám	Gold	Female	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Board Edge Straddle Mount	Hairpin Bellows	2	Phosphor Bronze
Samtec Inc. MEC8-170-02-L-DV	Board Guide	Solder	0.8 mm	0.031 in	Non Specified - Dual Edge	Black	140	Dual	10 Áin	0.25 Ám	Gold	Female	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Surface Mount	Hairpin Bellows	2	Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.08
		10	$ 9.32
		25	$ 8.81
		50	$ 8.49
		100	$ 7.96
Newark	Each	1	$ 9.25
		10	$ 8.56
		25	$ 7.96
		50	$ 7.45
		100	$ 7.03
		250	$ 6.62

Description

General part information

MEC8-170 Series

140 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black

MEC8-170-02-L-DV-A

Deep-Dive with AI

MEC8-170-02-L-DV-A

Deep-Dive with AI

Technical Specifications

MEC8-170 Series

Pricing

Description

MEC8-170 Series

Documents

MEC8 Series Other Related Documents 03

Datasheet

MEC8 Datasheet

0.80 mm Mini Edge Card Connector, Vertical

MEC8-170 Series
