H3AAH-2418M

Active

Assmann WSW Components

IDC CBL - HHSC24H/AE24M/HHSC24H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSC24H/AE24M/HHSC24H

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Length	Length	Length	Pitch - Connector	Pitch - Connector	Number of Rows	Number of Positions	Contact Finish	Color	Length [x]	Length [x]
Assmann WSW Components H3AAH-2406G	IDC	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	Socket to Socket	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	2	24	Gold
Assmann WSW Components H3AAH-2436M	IDC	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	Socket to Socket				0.1 in	2.54 mm	2	24	Gold	Multiple Ribbon	3 ft	914.4 mm
Assmann WSW Components H3AAH-2436G	IDC	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	Socket to Socket				0.1 in	2.54 mm	2	24	Gold		3 ft	914.4 mm
Assmann WSW Components H3AAH-2418M	IDC	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	Socket to Socket				0.1 in	2.54 mm	2	24	Gold	Multiple Ribbon	1.5 ft	457.2 mm
Assmann WSW Components H3AAH-2406M	IDC	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	Socket to Socket	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	2	24	Gold	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

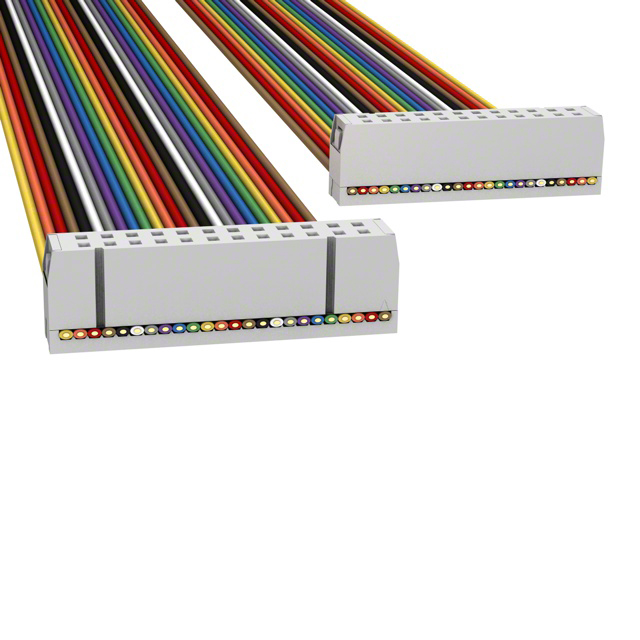

24 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
