TPK-R-1.125A

Active

OptiFuse

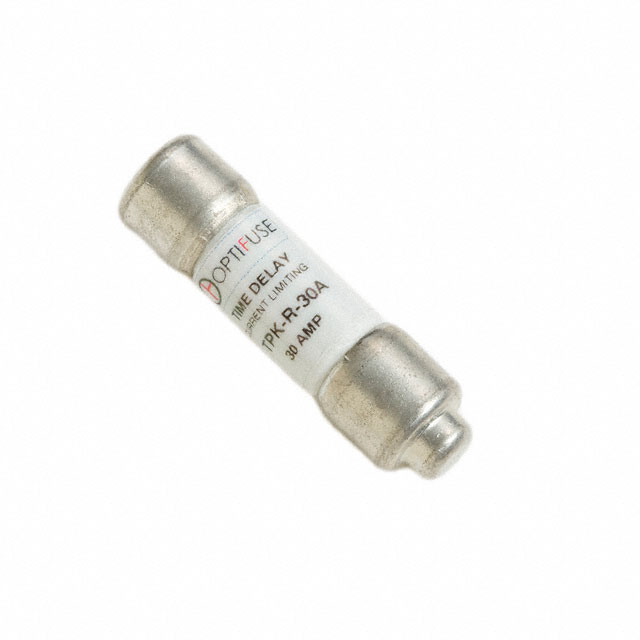

CLASS M FUSE, TIME DELAY 1.125A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TPK-R-1.125A

Active

OptiFuse

CLASS M FUSE, TIME DELAY 1.125A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TPK-R-1.125A

Approval Agency	CSA, UL
Breaking Capacity @ Rated Voltage	200 kA, 100 kA
Current Rating (Amps)	1.125 A
Fuse Type	Cartridge, Ceramic
Mounting Type	Requires Holder
Package / Case	5AG
Package / Case [x]	10 mm
Package / Case [y]	38 mm
Response Time	Slow Blow
Size / Dimension [diameter]	0.409 in
Size / Dimension [diameter]	10.4 mm
Size / Dimension [x]	38.1 mm
Size / Dimension [x]	1.5 in
Voltage Rating - AC	600 V
Voltage Rating - DC	300 V

TPK-R Series

Part	Approval Agency	Voltage Rating - AC	Class	Fuse Type	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Current Rating (Amps)	Response Time	Applications	Breaking Capacity @ Rated Voltage	Voltage Rating - DC
OptiFuse TPK-R-20A	cULus UL 248	600 VAC	CC	Cartridge	5AG	38 mm	10 mm	Requires Holder	38 mm	0.406 in	1.496 "	10.3 mm	20 A	Slow Blow	Electrical Industrial	10 kA 200 kA
OptiFuse TPK-R-2A	cULus UL 248	600 VAC	CC	Cartridge	5AG	38 mm	10 mm	Requires Holder	38 mm	0.406 in	1.496 "	10.3 mm	2 A	Slow Blow	Electrical Industrial	10 kA 200 kA
OptiFuse TPK-R-10A	cULus UL 248	600 VAC	CC	Cartridge	5AG	38 mm	10 mm	Requires Holder	38 mm	0.406 in	1.496 "	10.3 mm	10 A	Slow Blow	Electrical Industrial	10 kA 200 kA
OptiFuse TPK-R-1A	cULus UL 248	600 VAC	CC	Cartridge	5AG	38 mm	10 mm	Requires Holder	38 mm	0.406 in	1.496 "	10.3 mm		Slow Blow	Electrical Industrial	10 kA 200 kA
OptiFuse TPK-R-1.125A	CSA UL	600 V		Cartridge Ceramic	5AG	38 mm	10 mm	Requires Holder	38.1 mm	0.409 in	1.5 in	10.4 mm	1.125 A	Slow Blow		100 kA 200 kA	300 V
OptiFuse TPK-R-6A	cULus UL 248	600 VAC	CC	Cartridge	5AG	38 mm	10 mm	Requires Holder	38 mm	0.406 in	1.496 "	10.3 mm	6 A	Slow Blow	Electrical Industrial	10 kA 200 kA
OptiFuse TPK-R-1.5A	cULus UL 248	600 VAC	CC	Cartridge	5AG	38 mm	10 mm	Requires Holder	38 mm	0.406 in	1.496 "	10.3 mm	1.5 A	Slow Blow	Electrical Industrial	10 kA 200 kA
OptiFuse TPK-R-1.6A	cULus UL 248	600 VAC	CC	Cartridge	5AG	38 mm	10 mm	Requires Holder	38 mm	0.406 in	1.496 "	10.3 mm	1.6 A	Slow Blow	Electrical Industrial	10 kA 200 kA
OptiFuse TPK-R-8A	cULus UL 248	600 VAC	CC	Cartridge	5AG	38 mm	10 mm	Requires Holder	38 mm	0.406 in	1.496 "	10.3 mm	8 A	Slow Blow	Electrical Industrial	10 kA 200 kA
OptiFuse TPK-R-30A	cULus UL 248	600 VAC	CC	Cartridge	5AG	38 mm	10 mm	Requires Holder	38 mm	0.406 in	1.496 "	10.3 mm	30 A	Slow Blow	Electrical Industrial	10 kA 200 kA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TPK-R Series

1.125 A 600 V AC 300 V DC Fuse Cartridge, Ceramic Requires Holder 5AG, 10mm x 38mm (Midget)
