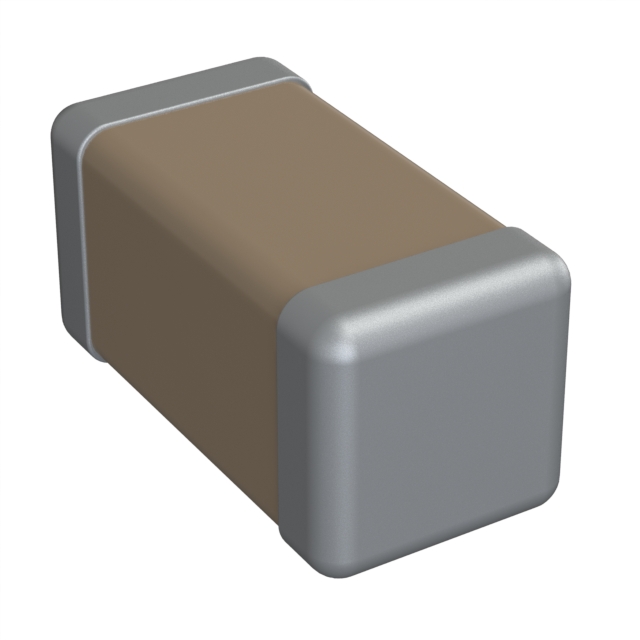

1206Y0250391KXT

Active

Knowles Syfer

CAP CER 390PF 25V X7R 1206

Deep-Dive with AI

Search across all available documentation for this part.

1206Y0250391KXT

Active

Knowles Syfer

CAP CER 390PF 25V X7R 1206

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1206Y0250391KXT	1206Y Series

Applications	Boardflex Sensitive	Boardflex Sensitive, Automotive, High Reliability, Bypass, Decoupling, RF, High Frequency, Microwave
Capacitance	390 pF	0.001 - 100000 pF
Features	Soft Termination	Soft Termination, High Temperature, Low ESL (X2Y), High Q, Low Loss
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 - 150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1206 (3216 Metric)	1206 (3216 Metric)
Ratings	-	AEC-Q200
Size / Dimension [x]	0.126 "	0.126 "
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Temperature Coefficient	X7R	NP0 (1B), C0G, X7R, NP0, X8R
Thickness (Max) [Max]	1.6 mm	1.3 - 1.6 mm
Thickness (Max) [Max]	0.063 in	0.051 - 0.063 in
Tolerance	10 %	0.05 - 20 %
Voltage - Rated	25 VDC	10 - 2000 V
Voltage - Rated	-	16 V
Voltage - Rated	-	1 - 2 kV
Voltage - Rated	-	1.2 kV
Voltage - Rated	-	1200 V

1206Y Series

CAP CER 33PF 16V C0G/NP0 1206

...

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Capacitance	Mounting Type	Voltage - Rated [custom]	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Features	Applications	Tolerance	Voltage - Rated	Voltage - Rated	Ratings
Knowles Syfer 1206Y0160330KCT	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	33 pF	MLCC, Surface Mount	16 V	C0G, NP0 (1B)	-55 °C	125 °C	1.6 mm	0.063 in	Soft Termination	Boardflex Sensitive	10 %
Knowles Syfer 1206Y6300391JCT	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	390 pF	MLCC, Surface Mount		C0G, NP0 (1B)	-55 °C	125 °C	1.6 mm	0.063 in	Soft Termination	Boardflex Sensitive	5 %	630 V
Knowles Syfer 1206Y2K00330FCT	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	33 pF	MLCC, Surface Mount		C0G, NP0 (1B)	-55 °C	125 °C	1.6 mm	0.063 in	Soft Termination	Boardflex Sensitive	1 %	2000 V	2 kV
Knowles Syfer 1206Y0631P80CCT	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	1.8 pF	MLCC, Surface Mount		C0G, NP0 (1B)	-55 °C	125 °C	1.6 mm	0.063 in	Soft Termination	Boardflex Sensitive	0.25 pF
Knowles Syfer 1206Y0250391KXT	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	390 pF	MLCC, Surface Mount		X7R	-55 °C	125 °C	1.6 mm	0.063 in	Soft Termination	Boardflex Sensitive	10 %	25 VDC
Knowles Syfer 1206Y5000223MET	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	0.022 µF	MLCC, Surface Mount		X7R	-55 °C	125 °C	1.6 mm	0.063 in	Soft Termination	Automotive, Boardflex Sensitive	20 %	500 V		AEC-Q200
Knowles Syfer 1206Y0250331GCT	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	330 pF	MLCC, Surface Mount		C0G, NP0 (1B)	-55 °C	125 °C	1.6 mm	0.063 in	Soft Termination	Boardflex Sensitive	2 %	25 VDC
Knowles Syfer 1206Y0630820KCT	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	82 pF	MLCC, Surface Mount		C0G, NP0 (1B)	-55 °C	125 °C	1.6 mm	0.063 in	Soft Termination	Boardflex Sensitive	10 %
Knowles Syfer 1206Y1K00150KAT	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	15 pF	MLCC, Surface Mount		C0G, NP0 (1B)	-55 °C	125 °C	1.6 mm	0.063 in	Soft Termination	Automotive, Boardflex Sensitive	10 %	1000 V	1 kV	AEC-Q200
Knowles Syfer 1206Y0500100FFT	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric)	10 pF	MLCC, Surface Mount		C0G, NP0	-55 °C	125 °C	1.6 mm	0.063 in	High Temperature, Soft Termination	Boardflex Sensitive, High Reliability	1 %	50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.19

Description

General part information

1206Y Series

390 pF ±10% 25V Ceramic Capacitor X7R 1206 (3216 Metric)

Documents

Technical documentation and resources

No documents available
