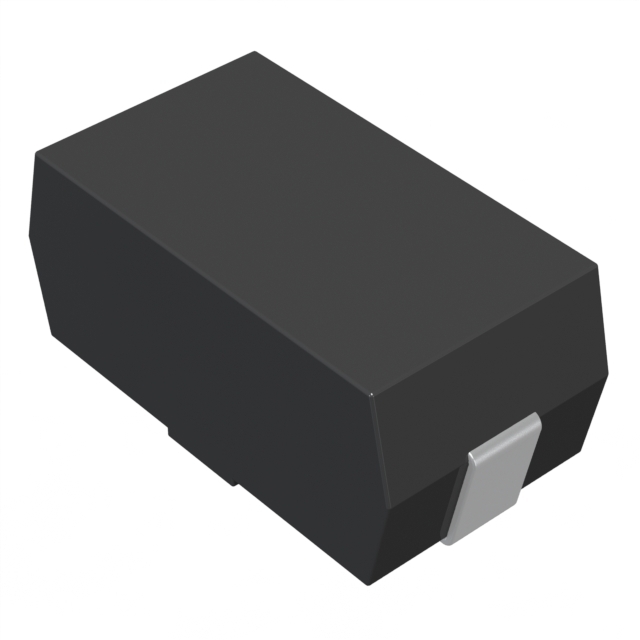

SP32R0FL

Active

TE Connectivity Passive Product

RES SMD 2 OHM 1% 3.5W 6028

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES SMD 2 OHM 1% 3.5W 6028

Technical Specifications

Parameters and characteristics for this part

Specification	SP32R0FL

Composition	Wirewound
Features	Moisture Resistant, Current Sense
Height - Seated (Max) [Max]	0.255 in
Height - Seated (Max) [Max]	6.48 mm
Number of Terminations	2
Package / Case	J-Lead, 6028
Power (Watts)	3.5 W
Resistance	2 Ohms
Size / Dimension [x]	0.6 in
Size / Dimension [x]	15.24 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Supplier Device Package	SMD
Temperature Coefficient	50 ppm/°C
Tolerance	1 %

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Temperature Coefficient	Power (Watts)	Resistance	Number of Terminations	Package / Case	Tolerance
TE Connectivity Passive Product SP37R0FL	0.6 in	7 mm	15.24 mm	0.276 in	Current Sense Moisture Resistant	Wirewound	0.255 in	6.48 mm	SMD	50 ppm/°C	3.5 W	7 Ohms	2	6028 J-Lead	1 %
TE Connectivity Passive Product SP32R0FL	0.6 in	7 mm	15.24 mm	0.276 in	Current Sense Moisture Resistant	Wirewound	0.255 in	6.48 mm	SMD	50 ppm/°C	3.5 W	2 Ohms	2	6028 J-Lead	1 %
TE Connectivity Passive Product SP31R0JT	0.6 in	7 mm	15.24 mm	0.276 in	Current Sense Moisture Resistant	Wirewound	0.255 in	6.48 mm	SMD	50 ppm/°C	3.5 W	1 Ohms	2	6028 J-Lead	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 7.02

General part information

2 Ohms ±1% 3.5W Chip Resistor 6028 (15270 Metric), J-Lead Current Sense, Moisture Resistant Wirewound
