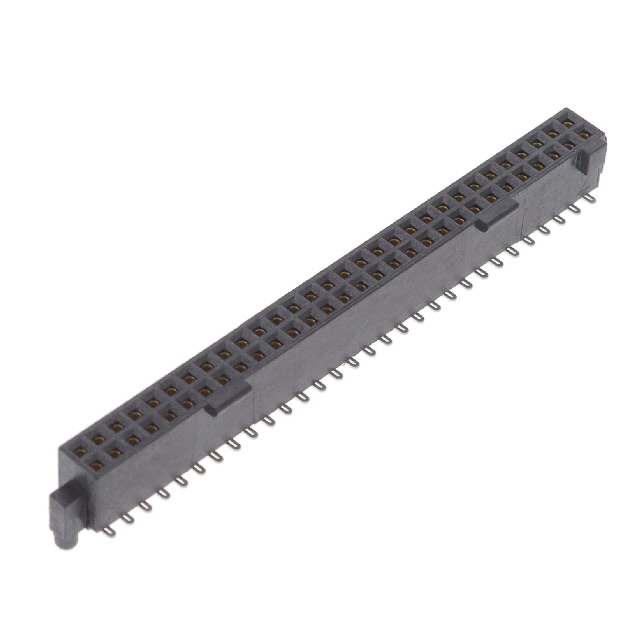

SFML-130-02-L-D-A

Active

Samtec Inc.

CONN RCPT 60POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SFML-105-01-L-D Datasheet 02 +1

SFML-130-02-L-D-A

Active

Samtec Inc.

CONN RCPT 60POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet SFML-105-01-L-D Datasheet 02 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFML-130-02-L-D-A

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFML-130 Series

Part	Mounting Type	Insulation Height	Insulation Height	Voltage Rating	Contact Shape	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Finish - Mating	Fastening Type	Contact Type	Number of Positions	Insulation Color	Style	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Features
Samtec Inc. SFML-130-01-F-D	Through Hole	4.57 mm	0.18 "	250 VAC	Square	All	0.12 in	3.05 mm	Solder	Gold	Locking Ramp	Female Socket	60	Black	Board to Board Cable	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	2	Receptacle	0.05 in	1.27 mm	3.2 A	-55 °C	125 °C	UL94 V-0	Tin	0.05 in	1.27 mm
Samtec Inc. SFML-130-02-S-D-LC-P-TR	Surface Mount	4.7 mm	0.185 in	250 VAC	Square	All			Solder	Gold	Locking Ramp	Female Socket	60	Black	Board to Board Cable	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	2	Receptacle	0.05 in	1.27 mm	3.2 A	-55 °C	125 °C	UL94 V-0	Tin	0.05 in	1.27 mm	Board Lock Pick and Place
Samtec Inc. SFML-130-T2-S-D-A-TR	Surface Mount	4.7 mm	0.185 in	250 VAC	Square	All			Solder	Gold	Locking Ramp	Female Socket	60	Black	Board to Board Cable	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	2	Receptacle	0.05 in	1.27 mm	3.2 A	-55 °C	125 °C	UL94 V-0	Tin	0.05 in	1.27 mm	Board Guide
Samtec Inc. SFML-130-T1-L-D-LC	Through Hole	4.57 mm	0.18 "	250 VAC	Square	All	0.12 in	3.05 mm	Solder	Gold	Locking Ramp	Female Socket	60	Black	Board to Board Cable	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	2	Receptacle	0.05 in	1.27 mm	3.2 A	-55 °C	125 °C	UL94 V-0	Tin	0.05 in	1.27 mm
Samtec Inc. SFML-130-01-L-D-A	Through Hole	4.57 mm	0.18 "	250 VAC	Square	All	0.12 in	3.05 mm	Solder	Gold	Locking Ramp	Female Socket	60	Black	Board to Board Cable	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	2	Receptacle	0.05 in	1.27 mm	3.2 A	-55 °C	125 °C	UL94 V-0	Tin	0.05 in	1.27 mm	Board Guide
Samtec Inc. SFML-130-02-S-D-LC-K-TR	Surface Mount	4.7 mm	0.185 in	250 VAC	Square	All			Solder	Gold	Locking Ramp	Female Socket	60	Black	Board to Board Cable	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	2	Receptacle	0.05 in	1.27 mm	3.2 A	-55 °C	125 °C	UL94 V-0	Tin	0.05 in	1.27 mm	Board Lock Pick and Place
Samtec Inc. SFML-130-02-L-D-A	Surface Mount	4.7 mm	0.185 in	250 VAC	Square	All			Solder	Gold	Locking Ramp	Female Socket	60	Black	Board to Board Cable	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	2	Receptacle	0.05 in	1.27 mm	3.2 A	-55 °C	125 °C	UL94 V-0	Tin	0.05 in	1.27 mm	Board Guide
Samtec Inc. SFML-130-T2-S-D-A-K-TR	Surface Mount	4.7 mm	0.185 in	250 VAC	Square	All			Solder	Gold	Locking Ramp	Female Socket	60	Black	Board to Board Cable	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	2	Receptacle	0.05 in	1.27 mm	3.2 A	-55 °C	125 °C	UL94 V-0	Tin	0.05 in	1.27 mm	Board Guide Pick and Place
Samtec Inc. SFML-130-01-S-D-LC	Through Hole	4.57 mm	0.18 "	250 VAC	Square	All	0.12 in	3.05 mm	Solder	Gold	Locking Ramp	Female Socket	60	Black	Board to Board Cable	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	2	Receptacle	0.05 in	1.27 mm	3.2 A	-55 °C	125 °C	UL94 V-0	Tin	0.05 in	1.27 mm
Samtec Inc. SFML-130-L2-S-D-A	Surface Mount	4.7 mm	0.185 in	250 VAC	Square	All			Solder	Gold	Locking Ramp	Female Socket	60	Black	Board to Board Cable	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	2	Receptacle	0.05 in	1.27 mm	3.2 A	-55 °C	125 °C	UL94 V-0	Tin	0.05 in	1.27 mm	Board Guide
