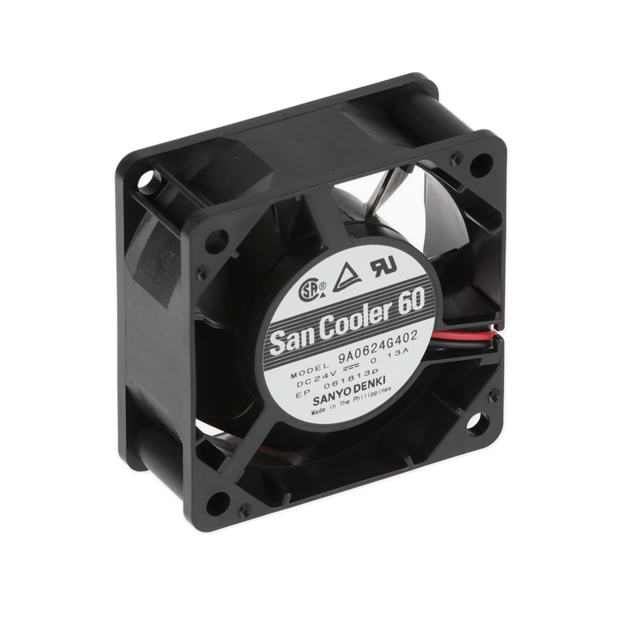

9A0624G402

Active

Sanyo Denki America Inc.

DC FAN AXIAL BALL BEARING 24V 12V TO 27.6V 27.6CFM 39DB 60 X 60 X 25MM

9A0624G402

Active

Sanyo Denki America Inc.

DC FAN AXIAL BALL BEARING 24V 12V TO 27.6V 27.6CFM 39DB 60 X 60 X 25MM

Description Specifications Series Pricing CAD Documents

Description

General part information

9A0624 Series

DC Fans DC Axial Fan, 60x60x25mm, 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	9A0624G402

Air Flow	27.6 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	0.13 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection
Lifetime	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	39 dB
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	3.12 W
RPM	5600 RPM
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Static Pressure	0.351 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	27.6 VDC
Voltage Range (Min)	12 V
Weight	0.176 lb
Width	25 mm

9A0624 Series

DC Fans DC Axial Fan, 60x60x25mm, 24VDC

Part	Power (Watts)	Noise	Approval Agency	Voltage - Rated	Width	Bearing Type	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Termination Leads Count	Termination Type	Termination	Static Pressure	Features	Fan Type	Weight	RPM	Air Flow	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating	Lifetime	Material - Frame	Voltage Range (Max)	Voltage Range (Min)	Material - Blade
Sanyo Denki America Inc. 9A0624M4D01	960 mW	28 dB	CSA TUV UL	24 VAC	25 mm	Ball	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	0.079 in H2O	Locked Rotor Sensor	Tubeaxial	0.176 lb	2600 RPM	12.7 CFM	-4 °F	158 °F	40 mA	40000 Hrs	Plastic	27.6 VDC	14 VDC	Plastic
Sanyo Denki America Inc. 9A0624G4021	3.12 W	39 dB	CSA TUV UL	24 VAC	25 mm	Ball	60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	0.351 in H2O	Locked Rotor Protection	Tubeaxial	0.176 lb	5600 RPM	27.6 CFM	-20 °C	60 °C	0.13 A	30000 Hrs	Plastic	27.6 VDC	12 V	Plastic
Sanyo Denki America Inc. 9A0624S401	1.92 W	33 dB	CSA TUV UL	24 VAC	25 mm	Ball	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	0.228 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	0.176 lb	4600 RPM	23 CFM	-4 °F	158 °F	0.08 A	40000 Hrs	Plastic	27.6 VDC	12 V	Plastic
Sanyo Denki America Inc. 9A0624H4011	1.44 W	28 dB	CSA TUV UL	24 VAC	25 mm	Ball	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	0.161 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	0.176 lb	3800 RPM	18.7 CFM	-4 °F	158 °F	60 mA	40000 Hrs	Plastic	27.6 VDC	12 V	Plastic
Sanyo Denki America Inc. 9A0624S4021	1.92 W	33 dB	CSA TUV UL	24 VAC	25 mm	Ball	60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	0.228 in H2O	Locked Rotor Protection	Tubeaxial	0.176 lb	4600 RPM	23 CFM	-4 °F	158 °F	0.08 A	40000 Hrs	Plastic	27.6 VDC	12 V	Plastic
Sanyo Denki America Inc. 9A0624H4D01	1.44 W	28 dB	CSA TUV UL	24 VAC	25 mm	Ball	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	0.161 in H2O	Locked Rotor Sensor	Tubeaxial	0.176 lb	3800 RPM	18.7 CFM	-4 °F	158 °F	60 mA	40000 Hrs	Plastic	27.6 VDC	12 V	Plastic
Sanyo Denki America Inc. 9A0624F402	1.2 W	24 dB	CSA TUV UL	24 VAC	25 mm	Ball	60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	0.118 in H2O	Locked Rotor Protection	Tubeaxial	0.176 lb	3200 RPM	15.5 CFM	-4 °F	158 °F	50 mA	40000 Hrs	Plastic	27.6 VDC	12 V	Plastic
Sanyo Denki America Inc. 9A0624M402	960 mW	20 dB	CSA TUV UL	24 VAC	25 mm	Ball	60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	0.079 in H2O	Locked Rotor Protection	Tubeaxial	0.176 lb	2600 RPM	12.7 CFM	-4 °F	158 °F	40 mA	40000 Hrs	Plastic	27.6 VDC	14 VDC	Plastic
Sanyo Denki America Inc. 9A0624G402	3.12 W	39 dB	CSA TUV UL	24 VAC	25 mm	Ball	60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	0.351 in H2O	Locked Rotor Protection	Tubeaxial	0.176 lb	5600 RPM	27.6 CFM	-20 °C	60 °C	0.13 A	30000 Hrs	Plastic	27.6 VDC	12 V	Plastic
Sanyo Denki America Inc. 9A0624M401	960 mW	20 dB	CSA TUV UL	24 VAC	25 mm	Ball	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	0.079 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	0.176 lb	2600 RPM	12.7 CFM	-4 °F	158 °F	40 mA	40000 Hrs	Plastic	27.6 VDC	14 VDC	Plastic
