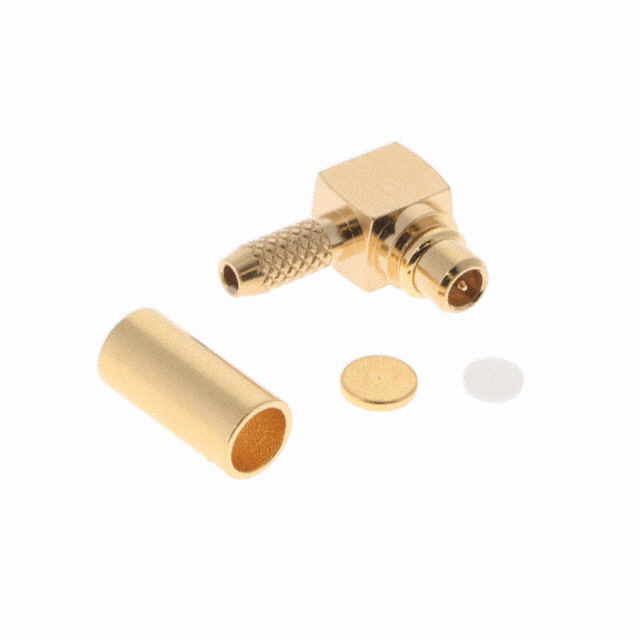

Specification	MMCX-P-C-H-RA-CA2

Body Finish	Gold
Body Material	Brass
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	6000 MHz
Housing Color	Gold
Impedance	50 Ohm
Includes	End Cap, Connector, Ferrule, Insulator
Includes Total Count	4 pcs
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp
Voltage Rating	500 V

MMCX-P Series

Part	Connector Style	Mounting Type	Center Contact Material	Frequency - Max	Number of Ports	Contact Termination	Shield Termination	Fastening Type	Impedance	Connector Type	Housing Color	Dielectric Material	Body Material	Center Contact Plating	Operating Temperature (Max)	Operating Temperature (Min)	Body Finish	Voltage Rating	Cable Group	Includes	Includes Total Count
Samtec Inc. MMCX-P-P-H-ST-TH1	MMCX	Through Hole	Brass	6000 MHz	1	Solder	Solder	Snap-On	50 Ohm	Male Pin Plug	Gold	Polytetrafluoroethylene (PTFE)	Brass	Gold	125 °C	-65 °C	Gold	500 V
Samtec Inc. MMCX-P-C-H-RA-CA2	MMCX	Free Hanging (In-Line) Right Angle	Beryllium Copper	6000 MHz	1	Solder	Crimp	Snap-On	50 Ohm	Male Pin Plug	Gold	Polytetrafluoroethylene (PTFE)	Brass	Gold	125 °C	-65 °C	Gold	500 V	RG-178	Connector End Cap Ferrule Insulator	4 pcs
Samtec Inc. MMCX-P-P-H-ST-SM1	MMCX	Surface Mount	Brass	6000 MHz	1	Solder	Solder	Snap-On	50 Ohm	Male Pin Plug	Gold	Polytetrafluoroethylene (PTFE)	Brass	Gold	125 °C	-65 °C	Gold	500 V
