6-103639-3
ActiveTE Connectivity AMP Connectors

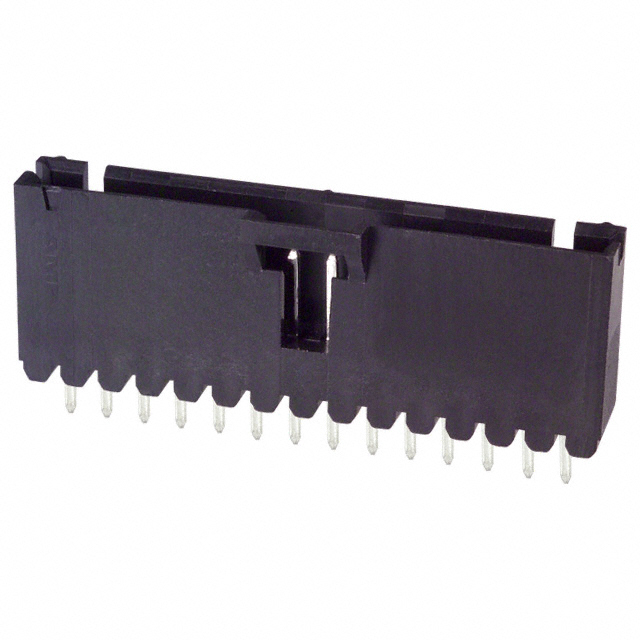

CONN HEADER VERT 14POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6-103639-3
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 14POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6-103639-3 | 103639 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Tin-Lead |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 13.6 mm | 13.6 mm |
| Insulation Height | 0.535 in | 0.535 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 14 | 2 - 20 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 0.545 in | 0.545 in |
| Overall Contact Length | 13.84 mm | 13.84 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.38 | |
| 14 | $ 1.26 | |||
| 112 | $ 1.12 | |||
| 504 | $ 1.09 | |||
103639 Series
CONN HEADER VERT 8POS 2.54MM
| Part | Shrouding | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Features | Overall Contact Length | Overall Contact Length | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Finish - Post | Contact Shape | Contact Length - Mating [x] | Contact Length - Mating | Insulation Height | Insulation Height | Insulation Material | Contact Length - Post | Contact Length - Post | Connector Type | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Material Flammability Rating | Termination | Contact Type | Mounting Type | Insulation Color | Style | Applications | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103639-7 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 8 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | |
TE Connectivity AMP Connectors 6-103639-6 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | ||
TE Connectivity AMP Connectors 1-103639-4 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 15 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin-Lead | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | Tin-Lead |
TE Connectivity AMP Connectors 1-103639-9 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 20 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin-Lead | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | Tin-Lead |
TE Connectivity AMP Connectors 6-103639-0 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 11 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | |
TE Connectivity AMP Connectors 5-103639-6 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 7 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | |
TE Connectivity AMP Connectors 6-103639-2 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 13 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | |
TE Connectivity AMP Connectors 5-103639-2 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | ||
TE Connectivity AMP Connectors 5-103639-1 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 2 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | |
TE Connectivity AMP Connectors 5-103639-3 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 4 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | |
TE Connectivity AMP Connectors 3-103639-3 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 6 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | |
TE Connectivity AMP Connectors 6-103639-3 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 14 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | |
TE Connectivity AMP Connectors 6-103639-9 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 20 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | |
TE Connectivity AMP Connectors 5-103639-9 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 10 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | |
TE Connectivity AMP Connectors 6-103639-4 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 15 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | |
TE Connectivity AMP Connectors 103639-4 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin-Lead | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | Tin-Lead | |
TE Connectivity AMP Connectors 1-103639-2 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 13 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin-Lead | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | Tin-Lead |
TE Connectivity AMP Connectors 5-103639-4 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | ||
TE Connectivity AMP Connectors 103639-3 | Shrouded - 4 Wall | All | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 4 | Keying Slot | 0.545 in | 13.84 mm | 1 | -65 ░C | 105 ░C | Latch Holder | Tin-Lead | Square | 0.23 in | 5.84 mm | 13.6 mm | 0.535 in | Thermoplastic | 0.13 in | 3.3 mm | Header | Brass | 2.54 µm | 100 µin | 3 A | UL94 V-0 | Solder | Male Pin | Through Hole | Black | Board to Board, Cable | Automotive, General Purpose, Medical, Telecommunications | Tin-Lead |
Description
General part information
103639 Series
Connector Header Through Hole 14 position 0.100" (2.54mm)
