18980-7SG-522

Active

Conxall/Switchcraft

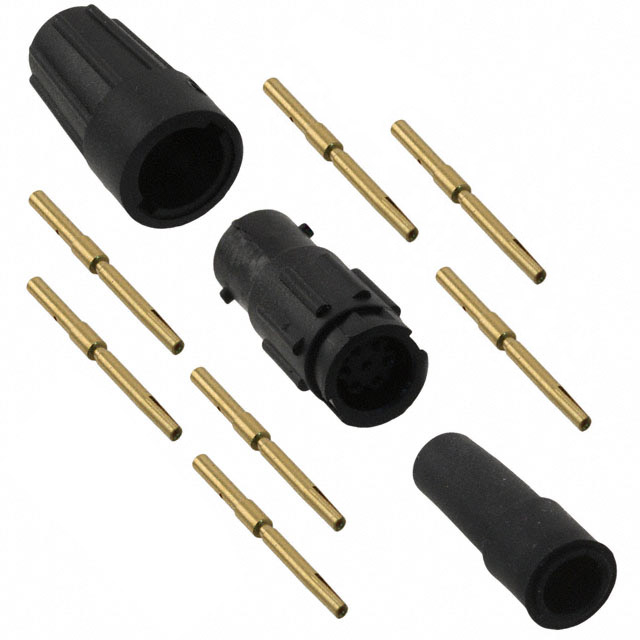

CONN RCPT FMALE 7POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 7POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	18980-7SG-522

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3.5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

CONN RCPT FMALE 7POS GOLD CRIMP

Part	Contact Finish - Mating	Primary Material	Voltage Rating	Ingress Protection	Applications	Contact Material	Color	Orientation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Mounting Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Material Flammability Rating	Shielding	Current Rating (Amps)	Backshell Material, Plating	Connector Type	Fastening Type	Termination
Conxall/Switchcraft 18980-7SG-522	Gold	Plastic	600 VAC	IP67 - Dust Tight, Waterproof	Data, Industrial, Instrumentation, Medical	Copper Alloy	Black	B	Backshell	85 °C	-40 °C	7	Free Hanging (In-Line)	5.84 mm	0.22 in	5.59 mm	0.23 in	UL94 HB	Unshielded	3.5 A	Thermoplastic	Receptacle, Female Sockets	Bayonet Lock	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Crimp
