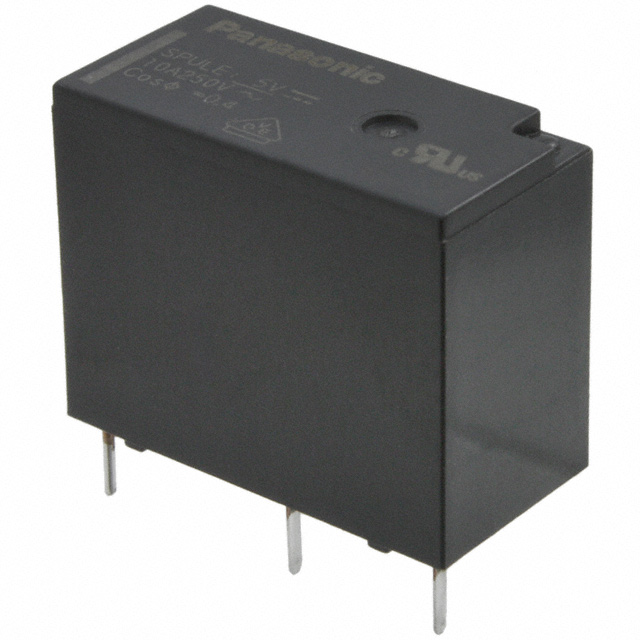

ALQ3F18

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 10A 18V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ALQ3F18

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 10A 18V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALQ3F18

Approval Agency	cURuus, CQC, VDE
Coil Current	11.1 mA
Coil Insulation	Class F
Coil Resistance	1.62 kOhms
Coil Type	Non Latching
Coil Voltage	18 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	5 A
Load - Max Switching	1250 VA, 150 W
Mounting Type	Through Hole
Must Operate Voltage	13.5 VDC
Must Release Voltage	0.9 VDC
Operate Time	20 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	PC Pin

ALQ3F Series

Part	Load - Max Switching	Termination Style	Approval Agency	Must Operate Voltage	Coil Current	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Insulation	Relay Type	Operate Time	Contact Material	Switching Voltage [Max]	Mounting Type	Release Time	Coil Type	Contact Form	Must Release Voltage	Coil Voltage	Coil Resistance	Seal Rating
Panasonic Electric Works ALQ3F12	150 W 1250 VA	PC Pin	CQC cURuus VDE	9 VDC	16.7 mA	5 A	85 °C	-40 °C	Class F	General Purpose	20 ms	Silver Nickel (AgNi)	30 VDC 250 VAC	Through Hole	20 ms	Non Latching	SPST-NO (1 Form A)	0.6 VDC	12 VDC	720 Ohms
Panasonic Electric Works ALQ3F06S	150 W 1250 VA	PC Pin	CQC cURuus VDE	4.5 VDC	33.3 mA	5 A	85 °C	-40 °C	Class F	General Purpose	20 ms	Silver Nickel (AgNi)	30 VDC 250 VAC	Through Hole	20 ms	Non Latching	SPST-NO (1 Form A)	0.3 VDC		180 Ohms	Sealed - Fully
Panasonic Electric Works ALQ3F12S	150 W 1250 VA	PC Pin	CQC cURuus VDE	9 VDC	16.7 mA	5 A	85 °C	-40 °C	Class F	General Purpose	20 ms	Silver Nickel (AgNi)	30 VDC 250 VAC	Through Hole	20 ms	Non Latching	SPST-NO (1 Form A)	0.6 VDC	12 VDC	720 Ohms	Sealed - Fully
Panasonic Electric Works ALQ3F05	150 W 1250 VA	PC Pin	CQC cURuus VDE	3.75 VDC	40 mA	5 A	85 °C	-40 °C	Class F	General Purpose	20 ms	Silver Nickel (AgNi)	30 VDC 250 VAC	Through Hole	20 ms	Non Latching	SPST-NO (1 Form A)	0.25 VDC	5 VDC	125 Ohms
Panasonic Electric Works ALQ3F18	150 W 1250 VA	PC Pin	CQC cURuus VDE	13.5 VDC	11.1 mA	5 A	85 °C	-40 °C	Class F	General Purpose	20 ms	Silver Nickel (AgNi)	30 VDC 250 VAC	Through Hole	20 ms	Non Latching	SPST-NO (1 Form A)	0.9 VDC	18 VDC	1.62 kOhms
Panasonic Electric Works ALQ3F09S	150 W 1250 VA	PC Pin	CQC cURuus VDE	6.75 VDC	22.2 mA	5 A	85 °C	-40 °C	Class F	General Purpose	20 ms	Silver Nickel (AgNi)	30 VDC 250 VAC	Through Hole	20 ms	Non Latching	SPST-NO (1 Form A)	0.45 VDC	9 VDC	405 Ohms	Sealed - Fully
Panasonic Electric Works ALQ3F24S	150 W 1250 VA	PC Pin	CQC cURuus VDE	18 VDC	8.3 mA	5 A	85 °C	-40 °C	Class F	General Purpose	20 ms	Silver Nickel (AgNi)	30 VDC 250 VAC	Through Hole	20 ms	Non Latching	SPST-NO (1 Form A)	1.2 VDC	24 VDC	2.88 kOhms	Sealed - Fully
Panasonic Electric Works ALQ3F05S	150 W 1250 VA	PC Pin	CQC cURuus VDE	3.75 VDC	40 mA	5 A	85 °C	-40 °C	Class F	General Purpose	20 ms	Silver Nickel (AgNi)	30 VDC 250 VAC	Through Hole	20 ms	Non Latching	SPST-NO (1 Form A)	0.25 VDC	5 VDC	125 Ohms	Sealed - Fully
Panasonic Electric Works ALQ3F18S	150 W 1250 VA	PC Pin	CQC cURuus VDE	13.5 VDC	11.1 mA	5 A	85 °C	-40 °C	Class F	General Purpose	20 ms	Silver Nickel (AgNi)	30 VDC 250 VAC	Through Hole	20 ms	Non Latching	SPST-NO (1 Form A)	0.9 VDC	18 VDC	1.62 kOhms	Sealed - Fully
Panasonic Electric Works ALQ3F06	150 W 1250 VA	PC Pin	CQC cURuus VDE	4.5 VDC	33.3 mA	5 A	85 °C	-40 °C	Class F	General Purpose	20 ms	Silver Nickel (AgNi)	30 VDC 250 VAC	Through Hole	20 ms	Non Latching	SPST-NO (1 Form A)	0.3 VDC		180 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.64
		10	$ 2.31
		25	$ 2.19
		50	$ 2.10
		100	$ 2.01
		300	$ 1.89
		500	$ 1.83
		1000	$ 1.76
		5000	$ 1.60

Description

General part information

ALQ3F Series

General Purpose Relay SPST-NO (1 Form A) 18VDC Coil Through Hole
