AL5802LPL-7
Obsolete30V ADJUSTABLE CURRENT SINK LINEAR LED DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
AL5802LPL-7
Obsolete30V ADJUSTABLE CURRENT SINK LINEAR LED DRIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AL5802LPL-7 |
|---|---|
| Current - Output / Channel | 120 mA |
| Dimming | PWM |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

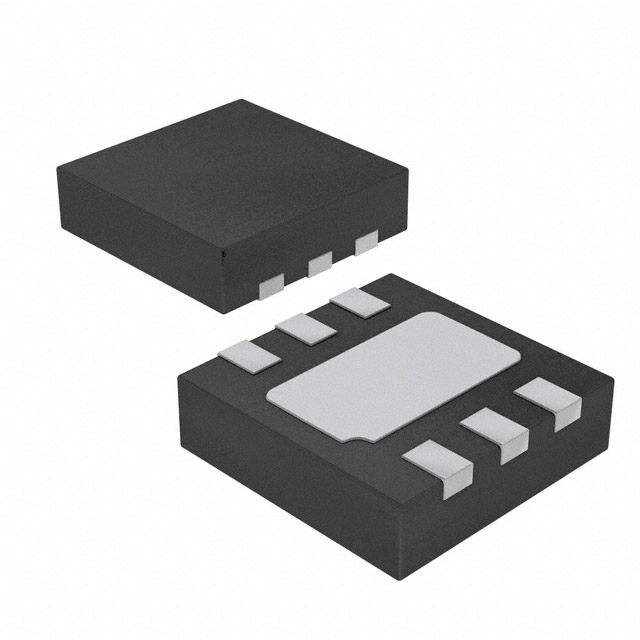

| Package / Case | 6-UDFN Exposed Pad |
| Supplier Device Package | U-DFN3030-6 |
| Type | Linear |
| Voltage - Output | 30 VDC |
| Voltage - Supply (Max) | 30 V |
| Voltage - Supply (Min) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AL5802 Series
The AL5802 combines a high gain NPN transistor with a prebiased NPN transistor to make a simple small footprint LED driver. The LED current is set by an external resistor connected to from REXT pin (6) to GND pin (4), the internal high gain transistor develops approximately 0.6V across the external resistor. The AL5802 open-collector output can operate from 0.8V to 30V enabling it to operate from 5V to 24V power supplies without additional components. PWM dimming of the LED current can be achieved by either driving the BIAS pin (2) with a low impedance voltage source, or driving the EN pin (3) with an external opencollector NPN transistor or open-drain N-channel MOSFET. The AL5802 is available in a SOT26 package and is ideal for driving 20mA to 120mA LED currents.
