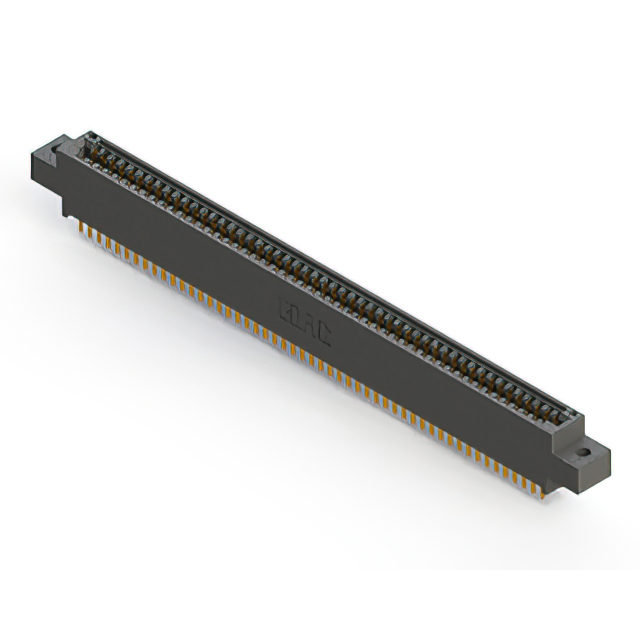

895-102-521-802

Active

EDAC Inc.

CONN EDGE DUAL FML 102POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-102-521-802

Active

EDAC Inc.

CONN EDGE DUAL FML 102POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-102-521-802

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	102
Number of Positions/Bay/Row [custom]	51
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

895-102 Series

...

Part	Number of Positions	Read Out	Gender	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Type	Termination	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Material - Insulation	Number of Positions/Bay/Row [custom]	Color	Termination Rows	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature	Features
EDAC Inc. 895-102-542-204	102	Dual	Female	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Cantilever	Wire Wrap	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Copper Alloy	125 °C	-40 °C	2	Polyphenylene Sulfide (PPS)	51	Black	2	Through Hole	Gold	10 Áin	0.25 Ám
EDAC Inc. 895-102-559-207	102	Dual	Female		Flush Mount M3 Threaded Insert Top Opening		Cantilever	Solder	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Copper Alloy	125 °C	-40 °C	2	Polyphenylene Sulfide (PPS)	51	Black	2	Through Hole Right Angle	Gold	10 Áin	0.25 Ám
EDAC Inc. 895-102-521-802	102	Dual	Female				Cantilever	Solder	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Copper Alloy	125 °C	-40 °C	2	Polyphenylene Sulfide (PPS)	51	Black	2	Through Hole	Gold	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 895-102-560-812	102	Dual	Female		Side Mount Opening Unthreaded		Cantilever	Solder	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Copper Alloy	125 °C	-40 °C	2	Polyphenylene Sulfide (PPS)	51	Black	2	Board Edge Straddle Mount	Gold	10 Áin	0.25 Ám	3.25 mm	0.128 in	Card Extender
EDAC Inc. 895-102-520-507	102	Dual	Female		M3 Threaded Insert Top Mount Opening		Cantilever	Solder	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Copper Alloy	125 °C	-40 °C	2	Polyphenylene Sulfide (PPS)	51	Black	2	Through Hole	Gold	10 Áin	0.25 Ám
EDAC Inc. 895-102-541-507	102	Dual	Female		M3 Threaded Insert Top Mount Opening		Cantilever	Wire Wrap	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Copper Alloy	125 °C	-40 °C	2	Polyphenylene Sulfide (PPS)	51	Black	2	Through Hole	Gold	10 Áin	0.25 Ám
EDAC Inc. 895-102-558-508	102	Dual	Female		4-40 Threaded Insert Top Mount Opening		Cantilever	Solder	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Copper Alloy	125 °C	-40 °C	2	Polyphenylene Sulfide (PPS)	51	Black	2	Through Hole Right Angle	Gold	10 Áin	0.25 Ám
EDAC Inc. 895-102-521-208	102	Dual	Female		4-40 Flush Mount Threaded Insert Top Opening		Cantilever	Solder	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Copper Alloy	125 °C	-40 °C	2	Polyphenylene Sulfide (PPS)	51	Black	2	Through Hole	Gold	10 Áin	0.25 Ám
EDAC Inc. 895-102-540-207	102	Dual	Female		Flush Mount M3 Threaded Insert Top Opening		Cantilever	Wire Wrap	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Copper Alloy	125 °C	-40 °C	2	Polyphenylene Sulfide (PPS)	51	Black	2	Through Hole	Gold	10 Áin	0.25 Ám
EDAC Inc. 895-102-555-203	102	Dual	Female	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Cantilever	Solder	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Copper Alloy	125 °C	-40 °C	2	Polyphenylene Sulfide (PPS)	51	Black	2	Board Edge Straddle Mount	Gold	10 Áin	0.25 Ám			Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 83.98
Newark	Each	1	$ 100.77
		100	$ 69.68
		250	$ 58.23
		500	$ 49.23
		1000	$ 37.63

Description

General part information

895-102 Series

102 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
