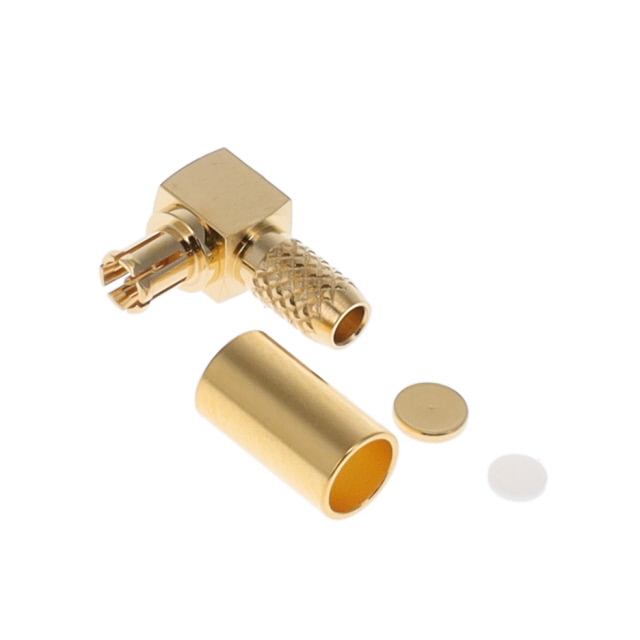

MMCX7-P-C-HF-RA-CA3

Active

Samtec Inc.

RF CONN, MMCX, R/A PLUG, 75 OHM, CABLE

Search across all available documentation for this part.

Active

Samtec Inc.

RF CONN, MMCX, R/A PLUG, 75 OHM, CABLE

Technical Specifications

Parameters and characteristics for this part

Specification	MMCX7-P-C-HF-RA-CA3

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-179
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Impedance	75 Ohms
Includes	Ferrule, Insulator, Connector, End Cap
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Mounting Type	Contact Termination	Number of Ports	Body Finish	Body Material	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Shield Termination	Connector Type	Center Contact Material	Dielectric Material	Fastening Type	Cable Group	Housing Color	Connector Style	Impedance
Samtec Inc. MMCX7-P-C-HF-RA-CA3	Free Hanging (In-Line) Right Angle	Solder	1	Gold	Beryllium Copper	Gold	125 °C	-65 ░C	Connector End Cap Ferrule Insulator	Crimp	Male Pin Plug	Brass	Polytetrafluoroethylene (PTFE)	Snap-On	RG-179	Gold	MMCX	75 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Solder
