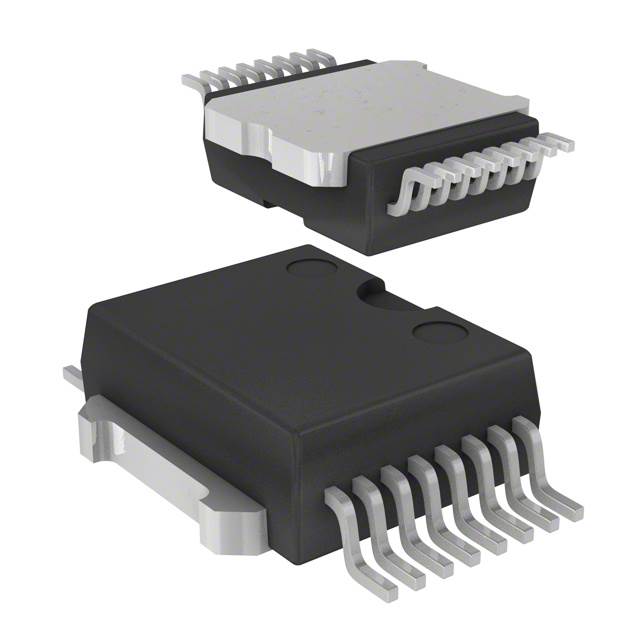

VNQ05XSP16

Active

STMicroelectronics

IC PWR DRIVER N-CHAN 1:1 PWRSO16

Search across all available documentation for this part.

Active

STMicroelectronics

IC PWR DRIVER N-CHAN 1:1 PWRSO16

Technical Specifications

Parameters and characteristics for this part

Specification	VNQ05XSP16

Current - Output (Max) [Max]	5 A
Fault Protection	Over Temperature, Current Limiting (Fixed), Over Voltage
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	4
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	16-PowerBSOP
Package / Case [custom]	9.4 mm
Package / Case [custom]	0.37 "
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	110 mOhm
Supplier Device Package	PowerSO-16™
Switch Type	General Purpose
Voltage - Load [Max]	36 V
Voltage - Load [Min]	5.5 V
Voltage - Supply (Vcc/Vdd)	False

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC PWR DRIVER N-CHAN 1:1 PWRSO16

Part	Interface	Ratio - Input:Output [custom]	Mounting Type	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Current - Output (Max) [Max]	Supplier Device Package	Voltage - Supply (Vcc/Vdd)	Input Type	Fault Protection	Number of Outputs	Output Configuration	Rds On (Typ)	Package / Case	Package / Case [custom]	Package / Case [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Type
STMicroelectronics VNQ05XSP16	On/Off	1:1	Surface Mount	N-Channel	5.5 V	36 V	5 A	PowerSO-16™		Non-Inverting	Current Limiting (Fixed), Over Temperature, Over Voltage	4	High Side	110 mOhm	16-PowerBSOP	9.4 mm	0.37 "	150 °C	-40 °C	General Purpose

General part information

Power Switch/Driver 1:1 N-Channel 5A PowerSO-16™
