DC2777A

Active

Analog Devices

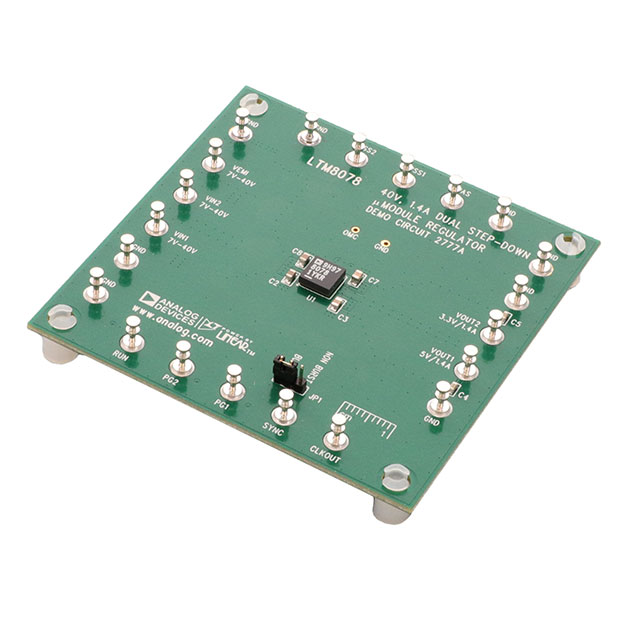

EVAL BOARD FOR LTM8078

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DC2777A

Active

Analog Devices

EVAL BOARD FOR LTM8078

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC2777A

Board Type	Fully Populated
Current - Output	1.4 A
Frequency - Switching	1.6 MHz
Main Purpose	DC/DC, Step Down
Outputs and Type	2
Outputs and Type	Non-Isolated
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	LTM8078
Voltage - Input [Max]	40 V
Voltage - Input [Min]	7 V
Voltage - Output	5 V, 3.3 V

LTM8078 Series

Dual 1.4A, Single 2.8A Step-Down Silent Switcher μModule Regulator

Part	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Regulator Topology	Main Purpose	Utilized IC / Part	Voltage - Output	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output	Features	Package / Case	Mounting Type	Type	Applications	Voltage - Output 1	Voltage - Output 2	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max)	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Control Features	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]
Analog Devices DC2777A	Fully Populated	2	Non-Isolated	Board(s)	Buck	DC/DC Step Down	LTM8078	3.3 V 5 V	1.6 MHz	40 V	7 V	1.4 A
Analog Devices LTM8078EY#PBF													Adjustable Output Remote On/Off	49-FBGA Module	Surface Mount	Non-Isolated PoL Module	ITE (Commercial)	5 V	3.3 V	7 V	6.3 mm	2.2 mm	0.25 "	6.3 mm	0.25 in	0.09 "	1.4 A	49-BGA	6.25	6.25	Active High Enable	2	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 77.35

Description

General part information

LTM8078 Series

The LTM8078 is 40VIN, dual 1.4A/single 2.8A step-down Silent Switcher μModule®regulator. The Silent Switcher architecture minimizes EMI while delivering high efficiency at frequencies up to 3MHz. Included in the package are the controllers, power switches, inductors, and support components. Operating over a wide input voltage range, the LTM8078 supports output voltages from 0.8V to 10V, and a switching frequency range of 300kHz to 3MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design. The LTM8078 product video is available on website.LTM8078#3PP is an AEC-Q104 qualified automotive grade μModule regulator. The production is compliant to Analog Devices automotive assemble flow. All components integrated in the package are AEC-Q100 or AEC-Q200 qualified.The LTM8078 is packaged in a compact (6.25mm × 6.25mm × 2.22mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8078 is available with SnPb (BGA) or RoHS compliant.ApplicationsAutomated Test EquipmentDistributed Supply RegulationIndustrial SuppliesMedical Equipment
